PE-52625
lmages are for reference only.PE-52625
FIXED IND 150UH 1.7A 420 MOHM TH
DatasheetRadial, Horizontal - Corner Terminals
29,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 µH Unshielded Toroidal Inductor 1.7 A 420mOhm Max Radial, Horizontal - Corner Terminals
PE-52625
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 420mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 20 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.710" L x 0.710" W (18.03mm x 18.03mm) |
| Height - Seated (Max) | 0.460" (11.68mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|

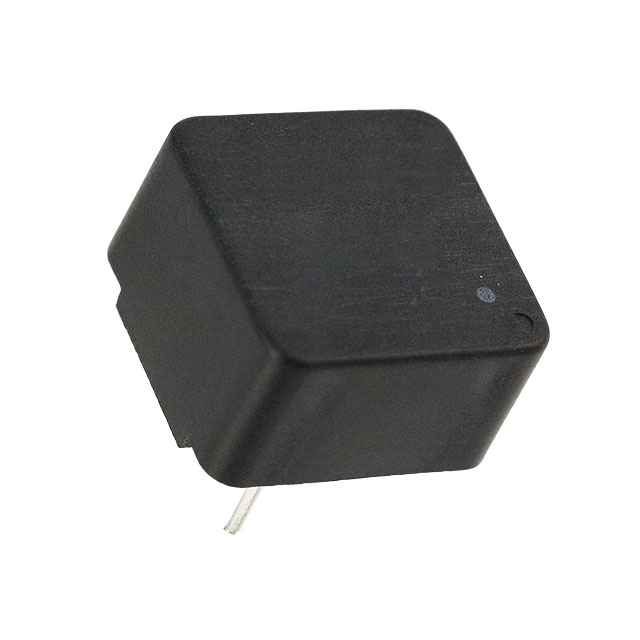

| Part Number | PE-52625NL | PE-52626 | PE-52626NL | PE-52627 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

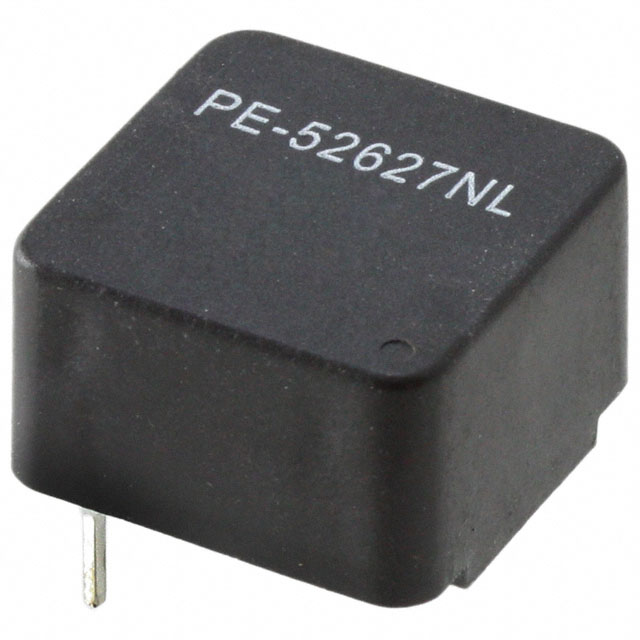

| Description | FIXED IND 150UH 1.7A 420 MOHM TH | FIXED IND 220UH 1.5A 420 MOHM TH | FIXED IND 220UH 1.5A 420 MOHM TH | FIXED IND 330UH 1A 780 MOHM TH |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tube | Tube | Tube | Tube |
