PE-53822NL
lmages are for reference only.PE-53822NL
FIXED IND 54UH 1A 200 MOHM TH
DatasheetRadial, Vertical - Corner Terminals
25,795 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
54 µH Shielded Toroidal Inductor 1 A 200mOhm Radial, Vertical - Corner Terminals
PE-53822NL
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 54 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 200mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.495" L x 0.495" W (12.57mm x 12.57mm) |
| Height - Seated (Max) | 0.375" (9.52mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

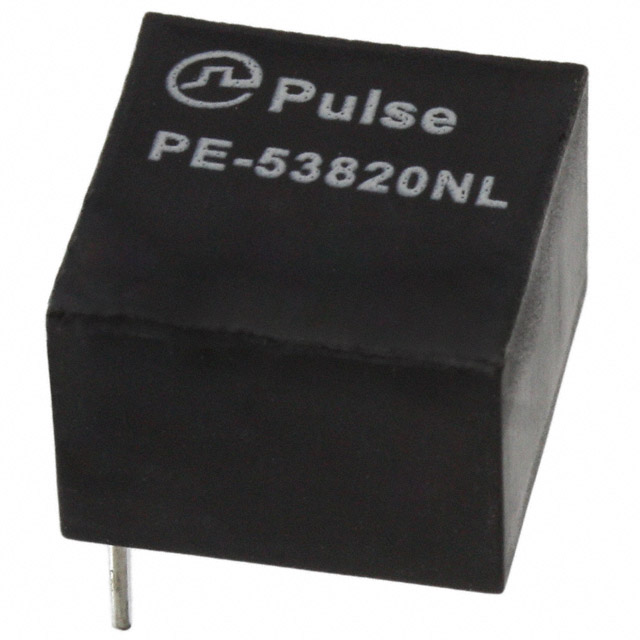

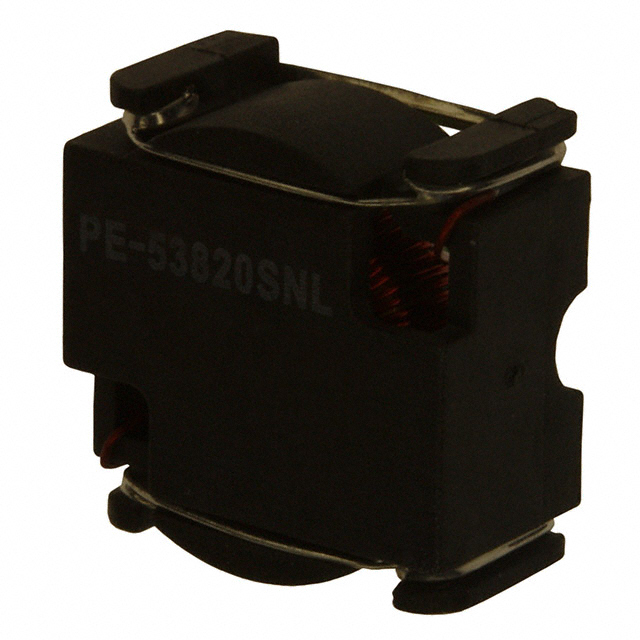

| Part Number | PE-53820NL | PE-53820S | PE-53820S | PE-53820SNL |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FIXED IND 115UH 670MA 400MOHM TH | FIXED IND 115UH 670MA 400MOHM SM | FIXED IND 115UH 670MA 400MOHM SM | FIXED IND 115UH 670MA 400MOHM SM |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tray | Bulk | Bulk | Bulk |
