PESD2CANFD24U-QBZ

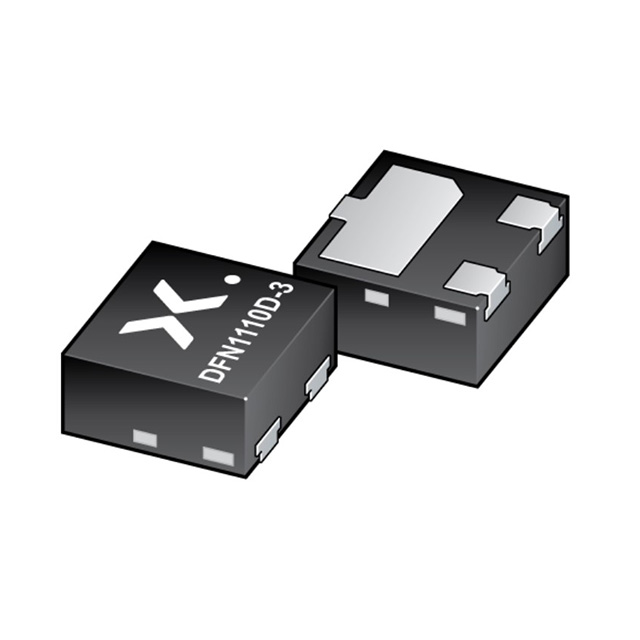

lmages are for reference only.PESD2CANFD24U-QBZ
TVS DIODE 24VWM 43VC DFN1110D-3
Datasheet3-XDFN Exposed Pad
36,216 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
43V Clamp 1.9A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN1110D-3
PESD2CANFD24U-QBZ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 25.5V |
| Voltage - Clamping (Max) @ Ipp | 43V |
| Current - Peak Pulse (10/1000µs) | 1.9A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | CAN |
| Capacitance @ Frequency | 3.2pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1110D-3 |
| Base Product Number | PESD2CANFD24 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | PESD2CANFD24U-QCZ | PESD2CANFD24U-TR | PESD2CANFD24U-UX | PESD2CANFD24L-TR |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 24VWM 43VC DFN1412D-3 | TVS DIODE 24VWM 42VC TO236AB | TVS DIODE 24VWM 43VC SC70 | TVS DIODE 24VWM TO236AB |
| Series | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
