PESD3V3L5UY,115
lmages are for reference only.PESD3V3L5UY,115
TVS DIODE 3.3VWM 12VC 6TSSOP
Datasheet6-TSSOP, SC-88, SOT-363
41,793 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 6-TSSOP
PESD3V3L5UY,115
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5.3V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) |
| Power - Peak Pulse | 25W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 22pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
| Base Product Number | PESD3 |
| Unidirectional Channels | 5 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

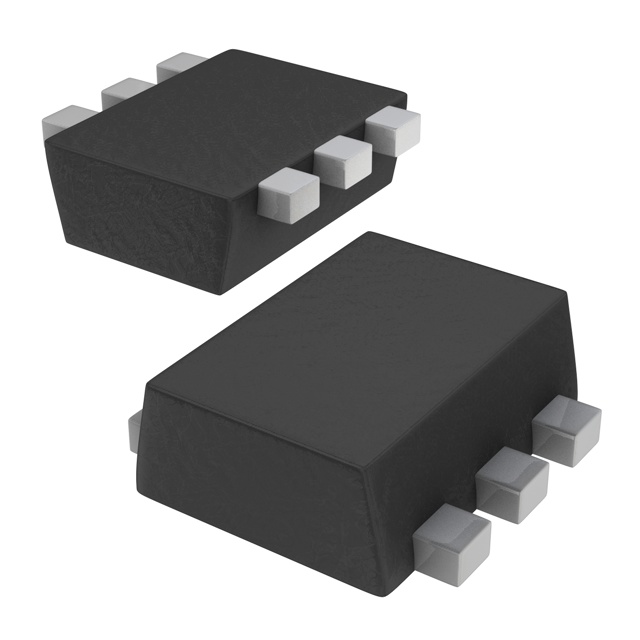

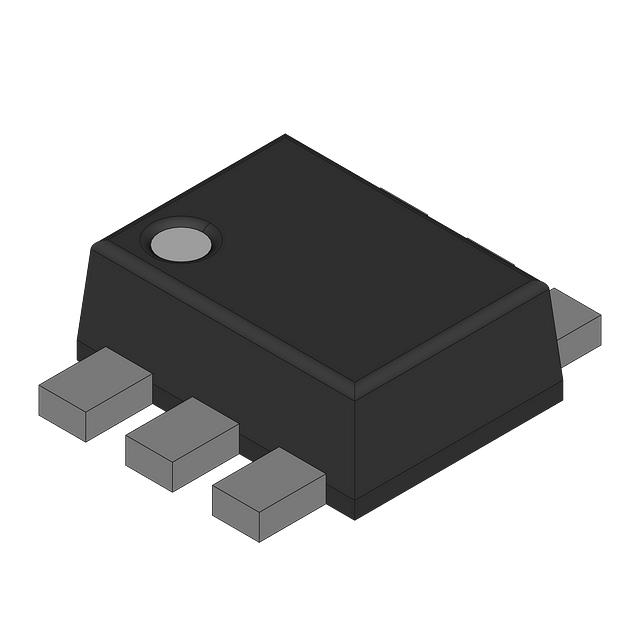

| Part Number | PESD3V3L5UF,115 | PESD3V3L5UK,132 | PESD3V3L5UV,115 | PESD3V3L5UV/DG,115 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3.3VWM 12VC 6XSON | TVS DIODE 3.3VWM 9.5VC 6XSON | TVS DIODE 3.3VWM 12VC SOT666 | PESD3V3L5UV - LOW CAPACITANCE UN |
| Series | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
