Product CatalogPart Number
PF-EC1-15
Manufacturer
Bourns Inc.Description
FUSE POWR CART PHOTO 1000VDC 15A
Datasheet
DatasheetPackage
5AG, 10mm x 38.1mm
In Stock
94,532 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PF-EC1-15
PF-EC1-15
lmages are for reference only.Payment Methods
Delivery Services
15A 1 kVDC Fuse Cartridge, Ceramic Requires Holder
Quick Inquiry
PF-EC1-15
Specifications
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Bourns Inc. |
| Series | POWrFuse™ PF-E |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 15A |
| Voltage Rating - AC | - |
| Response Time | - |
| Applications | Solar (Photovoltaic) |
| Features | - |
| Class | - |
| Approval Agency | cULus, UL |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 20kA |
| Package / Case | 5AG, 10mm x 38.1mm |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 365.0 |
| DC Cold Resistance | 8.54 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

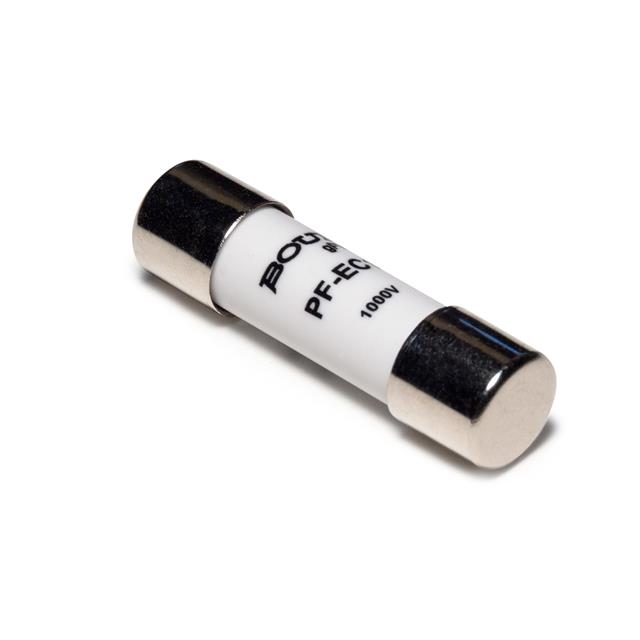

| Part Number | PF-EC1-20 | PF-EC1-25 | PF-EC1-30 | PF-ET1-15 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

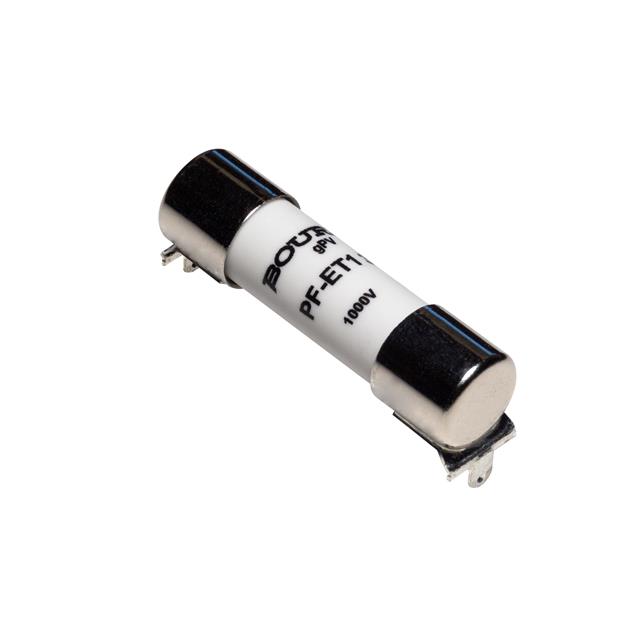

| Description | FUSE POWR CART PHOTO 1000VDC 20A | FUSE POWR CART PHOTO 1000VDC 25A | FUSE POWR CART PHOTO 1000VDC 30A | FUSE POWR TH PHOTO 1000VDC 15A |
| Series | POWrFuse™ PF-E | POWrFuse™ PF-E | POWrFuse™ PF-E | POWrFuse™ PF-E |
| Packaging | Box | Box | Box | Tray |
