PFC157181B-101K

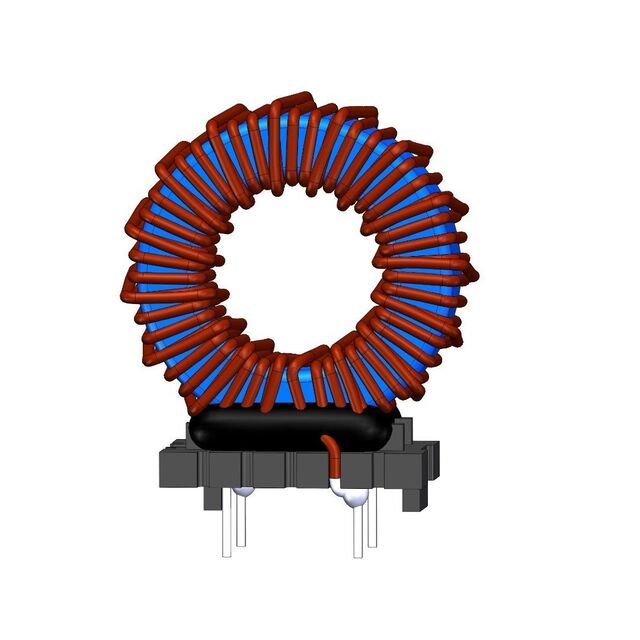

lmages are for reference only.PFC157181B-101K
PFC CHOKE 100.0UH 28.1A 20.0M
DatasheetRadial, Vertical (Open)
68,163 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Toroidal Inductor 14.7 A 20mOhm Max Radial, Vertical (Open)
PFC157181B-101K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC157181B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 14.7 A |
| Current - Saturation (Isat) | 14.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | Radial |
| Size / Dimension | 1.575" L x 0.748" W (40.00mm x 19.00mm) |
| Height - Seated (Max) | 1.713" (43.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFC157181B-102K | PFC157181B-201K | PFC157181B-251K | PFC157181B-351K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 1000.0UH 9.0A 279.0M | PFC CHOKE 200.0UH 20.2A 36.5M | PFC CHOKE 250.0UH 18.0A 46.5M | PFC CHOKE 350.0UH 15.1A 62.5M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
