PFC167193B-821K

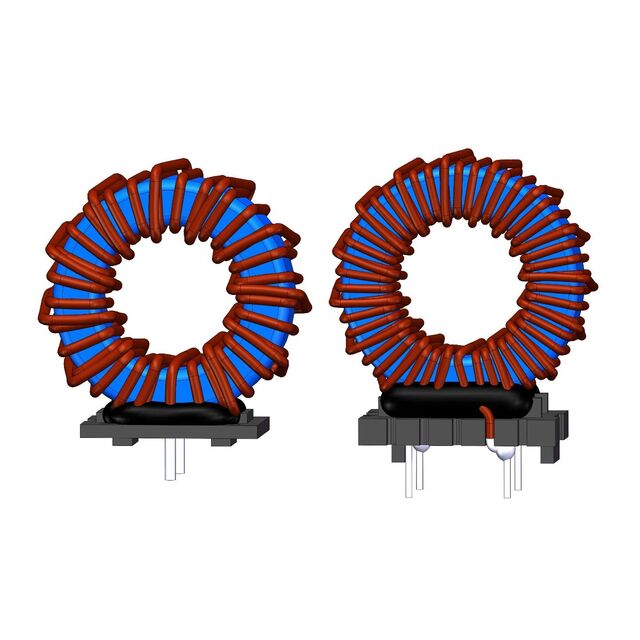

lmages are for reference only.PFC167193B-821K
PFC CHOKE 820.0UH 10.5A 170.0 M
DatasheetVertical, 4 PC Pin
16,537 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 µH Unshielded Toroidal Inductor 4.9 A 170mOhm Max Vertical, 4 PC Pin
PFC167193B-821K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC167193B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.9 A |
| Current - Saturation (Isat) | 5.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | - |
| Size / Dimension | 1.634" L x 0.768" W (41.50mm x 19.50mm) |
| Height - Seated (Max) | 1.909" (48.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFC167193B-101K | PFC167193B-102K | PFC167193B-201K | PFC167193B-251K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 100.0UH 29.5A 20.5 M | PFC CHOKE 1000.0UH 9.4A 228.5 M | PFC CHOKE 200.0UH 21.2A 38.0 M | PFC CHOKE 250.0UH 18.9A 47.5 M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
