PFC183209B-201K

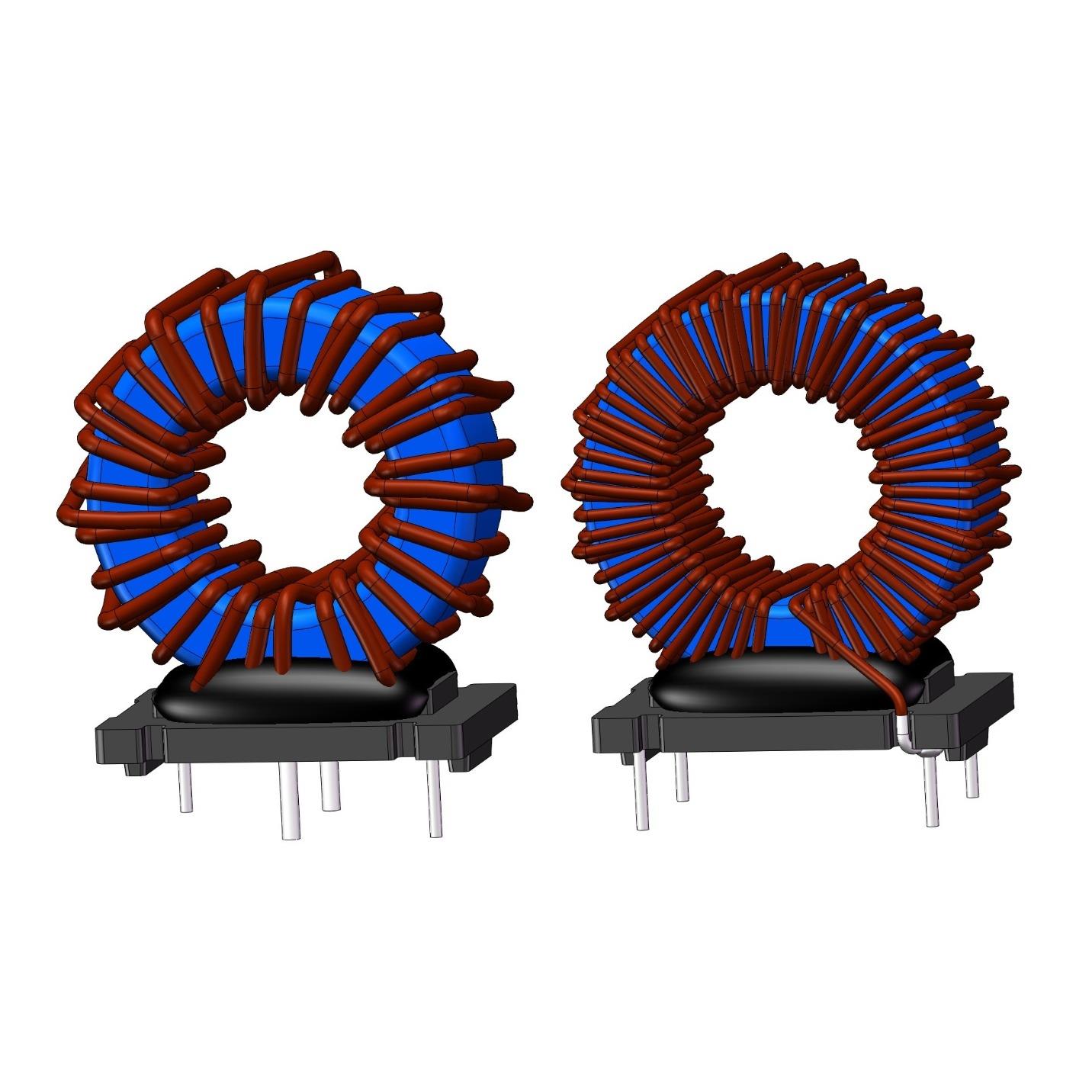

lmages are for reference only.PFC183209B-201K
PFC CHOKE 200.0UH 27.9A 29.5 M
DatasheetVertical, 4 PC Pin
23,502 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200 µH Unshielded Toroidal Inductor 14.5 A 29.5mOhm Max Vertical, 4 PC Pin
PFC183209B-201K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC183209B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 200 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 14.5 A |
| Current - Saturation (Isat) | 14.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 29.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | - |
| Size / Dimension | 1.831" L x 1.063" W (46.50mm x 27.00mm) |
| Height - Seated (Max) | 2.087" (53.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PFC183209B-251K | PFC183209B-101K | PFC183209B-101K | PFC183209B-102K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 250.0UH 24.9A 33.5 M | PFC CHOKE 100.0UH 39.8A 17.0 M | PFC CHOKE 100.0UH 39.8A 17.0 M | PFC CHOKE 1000.0UH 12.5A 183.0M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
