PFC282829B-131MHF
lmages are for reference only.PFC282829B-131MHF
PFC CHOKE 135.0UH, 26.3A, 14.0M
DatasheetRadial, Horizontal, 4 Leads
10,052 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
135 µH Unshielded Wirewound Inductor 15 A 14mOhm Radial, Horizontal, 4 Leads
PFC282829B-131MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 135 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | 13.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads |
| Supplier Device Package | Radial |
| Size / Dimension | 1.083" L x 1.122" W (27.50mm x 28.50mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

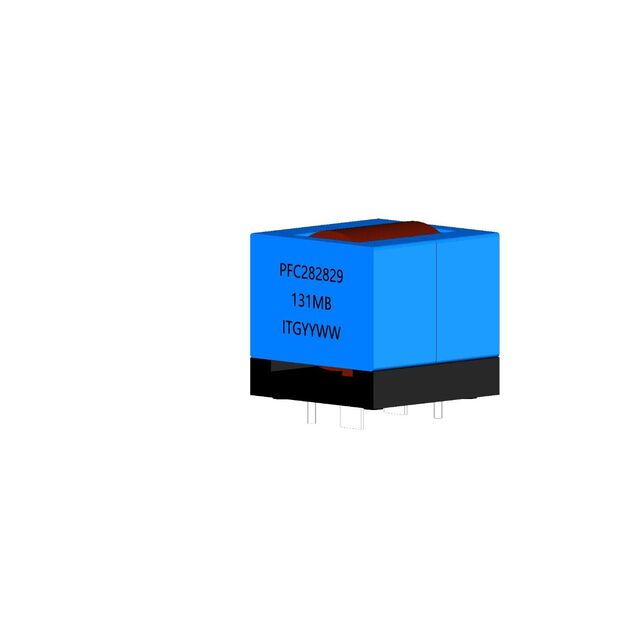

| Part Number | PFC282829B-111MHF | PFC282829B-211MHF | PFC282829B-341MHF | PFC282829B-701MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 115.0UH, 28.0A, 11.9M | PFC CHOKE 210.0UH, 21.0A, 21.6M | PFC CHOKE 340.0UH, 16.5A, 36.6M | PFC CHOKE 700.0UH, 11.5A, 86.0M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
