PHP00805E2742BBT1

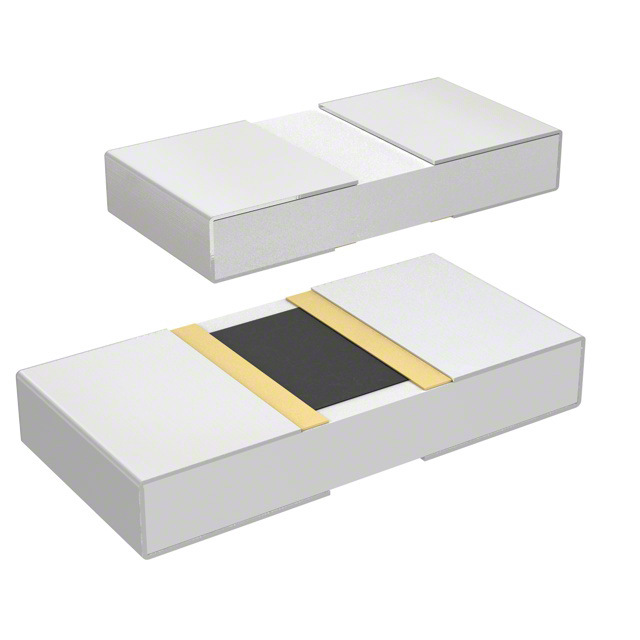

lmages are for reference only.PHP00805E2742BBT1
RES SMD 27.4K OHM 0.1% 5/8W 0805
Datasheet0805 (2012 Metric)
83,369 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27.4 kOhms ±0.1% 0.63W, 5/8W Chip Resistor 0805 (2012 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
PHP00805E2742BBT1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Mfr | Vishay Dale Thin Film |
| Series | PHP |
| Resistance | 27.4 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.63W, 5/8W |
| Composition | Thin Film |
| Features | Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PHP00805E2742BST1 | PHP00805E2710BBT1 | PHP00805E2710BST1 | PHP00805E2711BBT1 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RES SMD 27.4K OHM 0.1% 5/8W 0805 | RES SMD 271 OHM 0.1% 5/8W 0805 | RES SMD 271 OHM 0.1% 5/8W 0805 | RES SMD 2.71K OHM 0.1% 5/8W 0805 |
| Series | Vishay Dale Thin Film | |||
| Packaging | Tape & Reel (TR) |
