PHP00805H2841BBT1

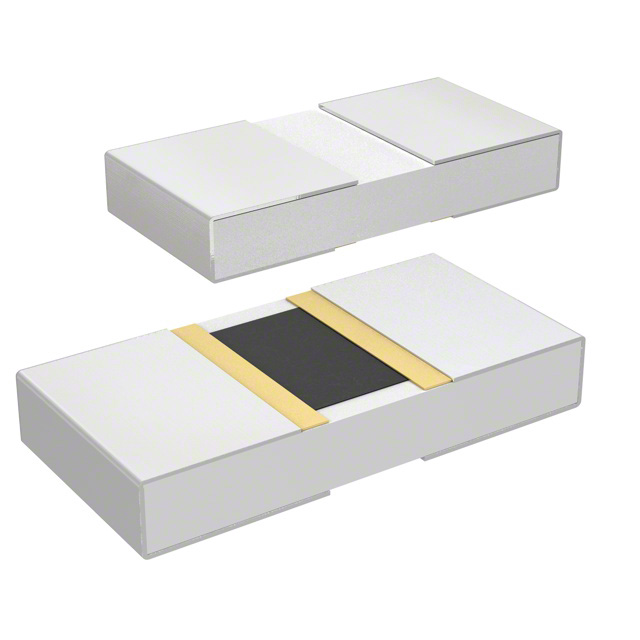

lmages are for reference only.PHP00805H2841BBT1
RES SMD 2.84K OHM 0.1% 5/8W 0805
Datasheet0805 (2012 Metric)
54,905 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.84 kOhms ±0.1% 0.63W, 5/8W Chip Resistor 0805 (2012 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
PHP00805H2841BBT1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | PHP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Resistance | 2.84 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.63W, 5/8W |
| Composition | Thin Film |
| Features | Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | PHP00805H2841BST1 | PHP00805H2800BBT1 | PHP00805H2800BST1 | PHP00805H2801BBT1 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RES SMD 2.84K OHM 0.1% 5/8W 0805 | RES SMD 280 OHM 0.1% 5/8W 0805 | RES SMD 280 OHM 0.1% 5/8W 0805 | RES SMD 2.8K OHM 0.1% 5/8W 0805 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Recommended Products
| Delivery Time | In-stock items can be shipped within 24 hours. Some parts will be arranged for delivery within 1-2 days from the date all items arrive at our warehouse. And Orwintech ships order once a day at about 17:00, except Sunday. Once the goods are shipped, the estimated delivery time depends on the shipping methods and Delivery destination. The table below shows are the logistic time for some common countries. |
| Delivery Cost | Use your express account for shipment if you have one. Use our account for the shipment. Refer to the table below for the approximate charges. (Different time frame / countries / package size has different price.) |
| Delivery Method | Global Common Shipment by DHL / UPS / FedEx / TNT / EMS / SF we support. Others more shipping ways, please get in touch with us. |
| Region | Country | Logistic Time(Day) |
| America | United States | 5 |
| Brazil | 7 | |
| Europe | Germany | 5 |
| United Kingdom | 4 | |
| Ltaly | 5 | |
| Oceania | Australia | 6 |
| New Zealand | 5 | |
| Asia | India | 4 |
| Japan | 4 | |
| Middle East | Israel | 6 |
| Shipment charges(KG) | Reference DHL(USD$) |
| 0.00kg-1.00kg | USD$30.00 - USD$60.00 |
| 1.00kg-2.00kg | USD$40.00 - USD$80.00 |
| 2.00kg-3.00kg | USD$50.00 - USD$100 |
