PHPA1206E4990BST1

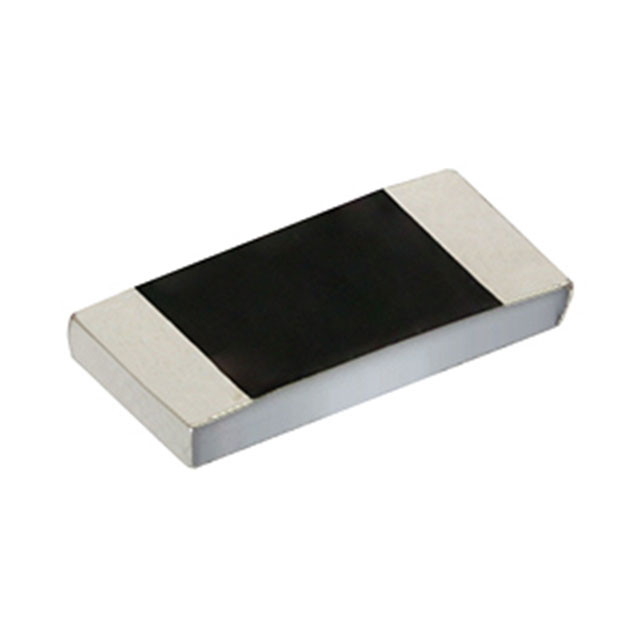

lmages are for reference only.PHPA1206E4990BST1
THIN FILM RES SMD 499 OHM 0.1% 1
Datasheet1206 (3216 Metric)
74,083 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
499 Ohms ±0.1% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, High Power, Moisture Resistant Thin Film
PHPA1206E4990BST1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Vishay Dale Thin Film |
| Series | PHPA |
| Resistance | 499 Ohms |
| Tolerance | ±0.1% |
| Power (Watts) | 1W |
| Composition | Thin Film |
| Features | Automotive AEC-Q200, High Power, Moisture Resistant |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PHPA1206E4991BST1 | PHPA1206E4992BST1 | PHPA1206E49R9BST1 | PHPA1206E1000BST1 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | THIN FILM RES SMD 4.99K OHM 0.1% | THIN FILM RES SMD 49.9K OHM 0.1% | THIN FILM RES SMD 49.9 OHM 0.1% | THIN FILM RES SMD 100 OHM 0.1% 1 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
