PI3USB32224AXEAEX
lmages are for reference only.PI3USB32224AXEAEX
IC SWITCH USB 1:1 10 OHM
Datasheet24-XFQFN Exposed Pad
42,566 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB Switch IC 2 Channel 24-X1QFN (2x4)
PI3USB32224AXEAEX
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Switch Circuit | SPST |
| Number of Channels | 2 |
| On-State Resistance (Max) | 10Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-XFQFN Exposed Pad |
| Supplier Device Package | 24-X1QFN (2x4) |
| Base Product Number | PI3USB32224 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

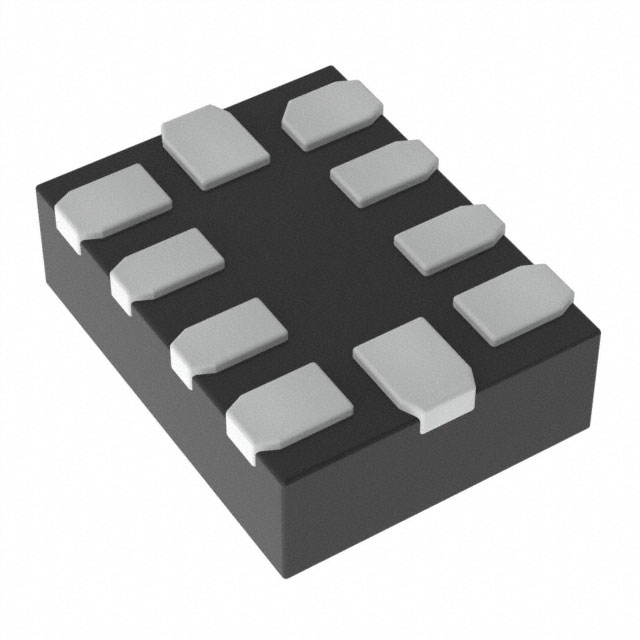

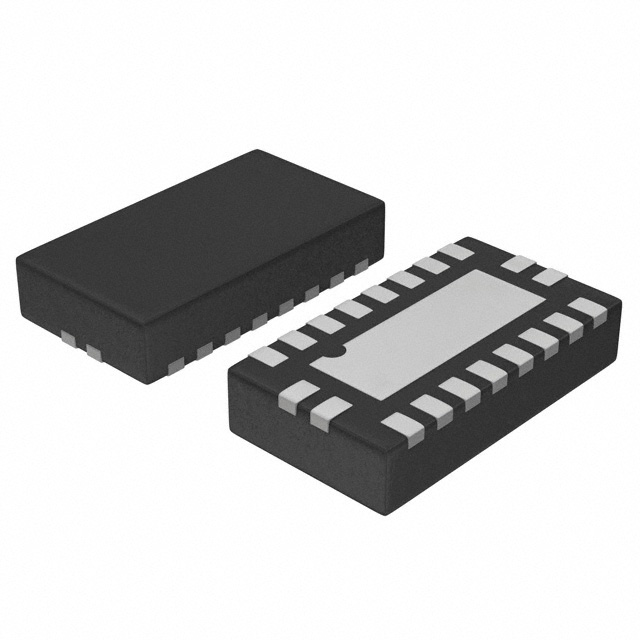

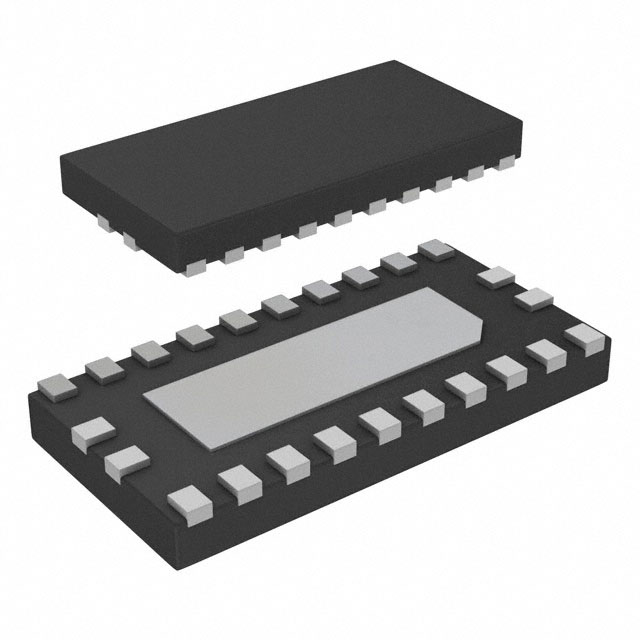

| Part Number | PI3USB32224BXEAEX | PI3USB3000ZUAEX | PI3USB302-AUWF | PI3USB302-AZBEX |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC SWITCH SPST USB 2.0 8TQFN | USB2 SWITCH U-QFN1520-10 T&R 3K | WAFER USB3 SWITCH 0.18UM CMOS | IC MUX/DEMUX USB 3.0 20TQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
