PI4ULS5V202Q1UEX
lmages are for reference only.PI4ULS5V202Q1UEX
IC TRANSLTR BIDIRECTIONAL 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
26,891 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 20Mbps 8-MSOP
PI4ULS5V202Q1UEX
| Category | Integrated Circuits (ICs) - Logic - Translators-Level Shifters |
| Manufacturer | Diodes Incorporated |
| Series | ULS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.2 V ~ 5.5 V |
| Voltage - VCCB | 1.2 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 20Mbps |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | PI4ULS5V202 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | PI4ULS5V202Q1UEX | PI4ULS5V201TAEX | PI4ULS5V201TAEX | PI4ULS5V201XVE |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

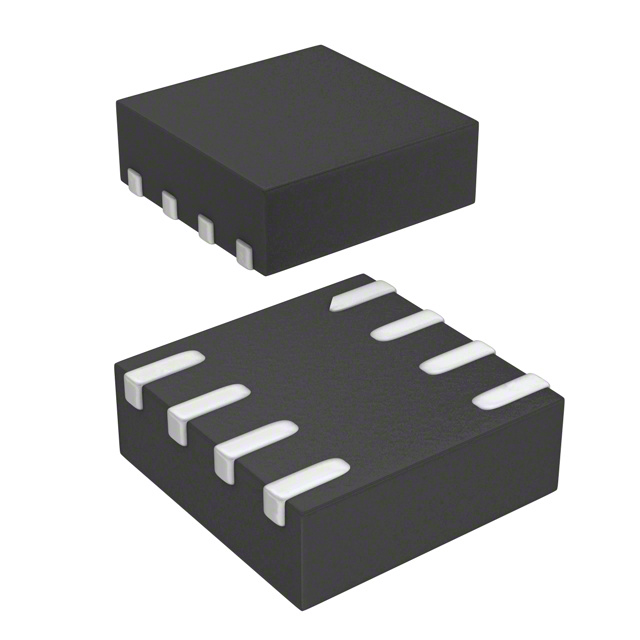

| Description | IC TRANSLTR BIDIRECTIONAL 8MSOP | IC TRANSLATOR BIDIR SOT23-6 | IC TRANSLATOR BIDIR SOT23-6 | IC TRANSLTR BIDIRECTIONAL 8UDFN |
| Series | ULS | ULS | ULS | ULS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
