PI6LC48P0405LIEX
lmages are for reference only.PI6LC48P0405LIEX
4-OUTPUT ETHERNET LVPECL SYNTHES
Datasheet24-TSSOP (0.173", 4.40mm Width)
21,814 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ethernet Clock Generator IC 136MHz 1 Output 24-TSSOP
PI6LC48P0405LIEX
| Category | Integrated Circuits (ICs) - Clock-Timing - Application Specific Clock-Timing |
| Manufacturer | Diodes Incorporated |
| Series | HiFlex™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| PLL | Yes with Bypass |
| Main Purpose | Ethernet |
| Input | LVCMOS, LVTTL, Crystal |
| Output | LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 136MHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Base Product Number | PI6LC48 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

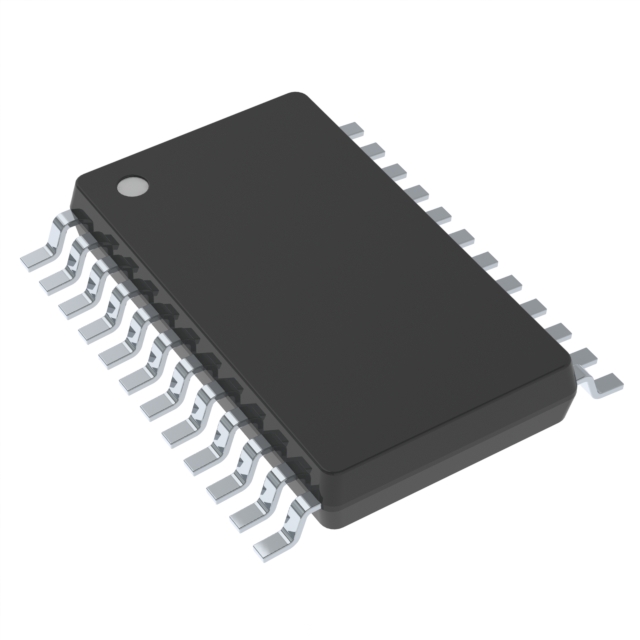

| Part Number | PI6LC48P0405LIE | PI6LC48P0405LIE | PI6LC48P0405LIEX | PI6LC48P0401LE |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC CLOCK 125MHZ 1CIR 24TSSOP | IC CLOCK 125MHZ 1CIR 24TSSOP | 4-OUTPUT ETHERNET LVPECL SYNTHES | CLOCK GENERATOR TSSOP-24 |
| Series | HiFlex™ | HiFlex™ | HiFlex™ | * |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
