PIC16F18023-E/MG
lmages are for reference only.PIC16F18023-E/MG
IC MCU 8BIT 3.5KB FLASH 16VFQFN
Datasheet16-VFQFN Exposed Pad
22,097 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PIC PIC® 16F Microcontroller IC 8-Bit 32MHz 3.5KB (3.5K x 8) FLASH 16-QFN (3x3)
PIC16F18023-E/MG
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Microchip Technology |
| Series | PIC® 16F |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 3.5KB (3.5K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 15x10b SAR; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (3x3) |
| Package / Case | 16-VFQFN Exposed Pad |
| Base Product Number | PIC16F18023 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PIC16F18023-E/P | PIC16F18023-E/SL | PIC16F18023-E/ST | PIC16F18023-I/MG |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

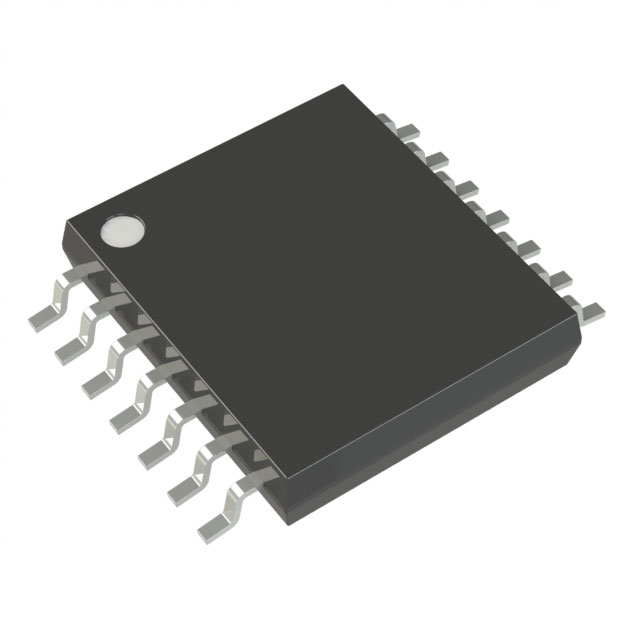

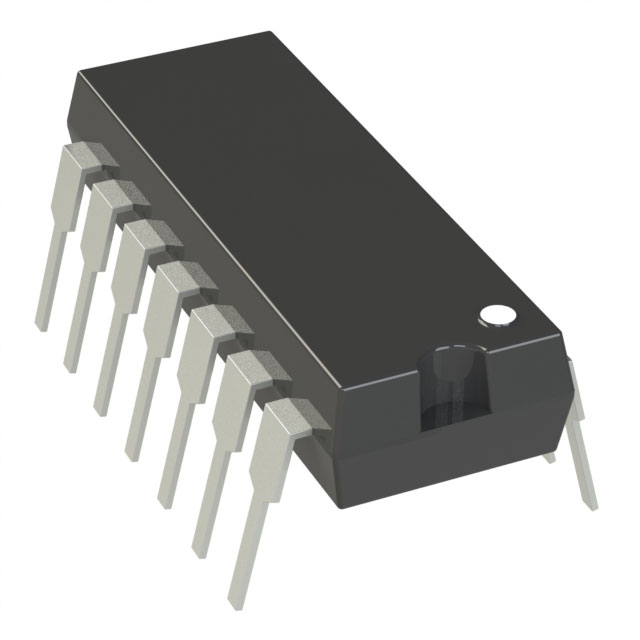

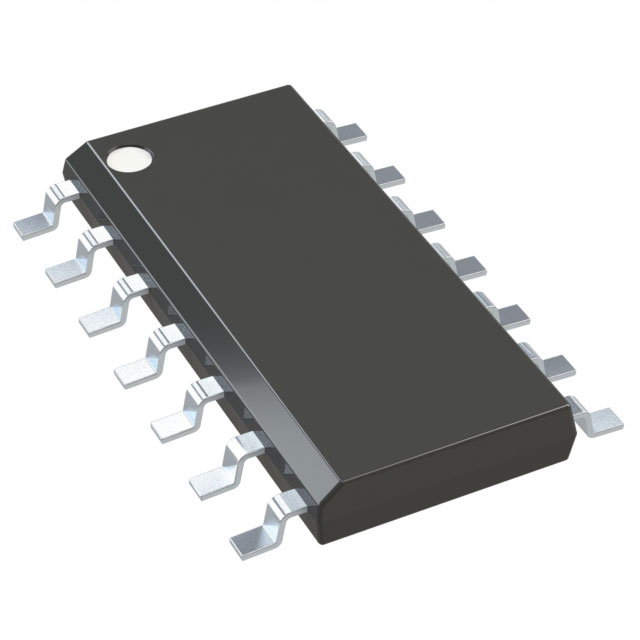

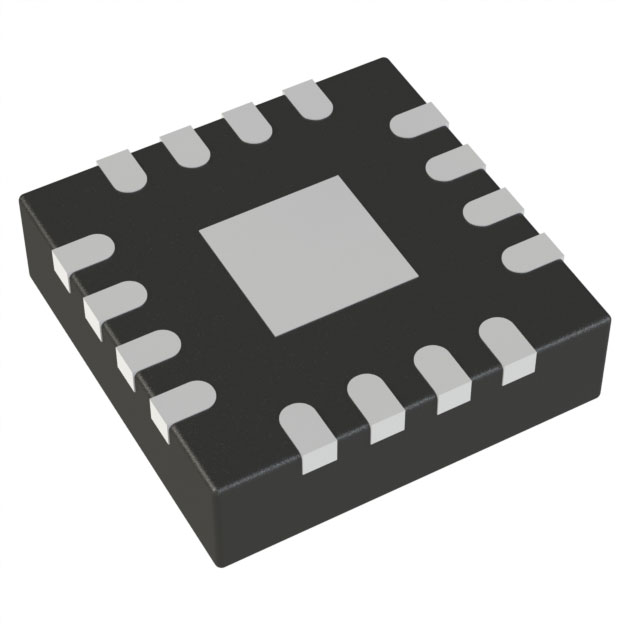

| Description | IC MCU 8BIT 3.5KB FLASH 14DIP | IC MCU 8BIT 3.5KB FLASH 14SOIC | IC MCU 8BIT 3.5KB FLASH 14TSSOP | IC MCU 8BIT 3.5KB FLASH 16VFQFN |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tube | Tube | Tube | Tube |
