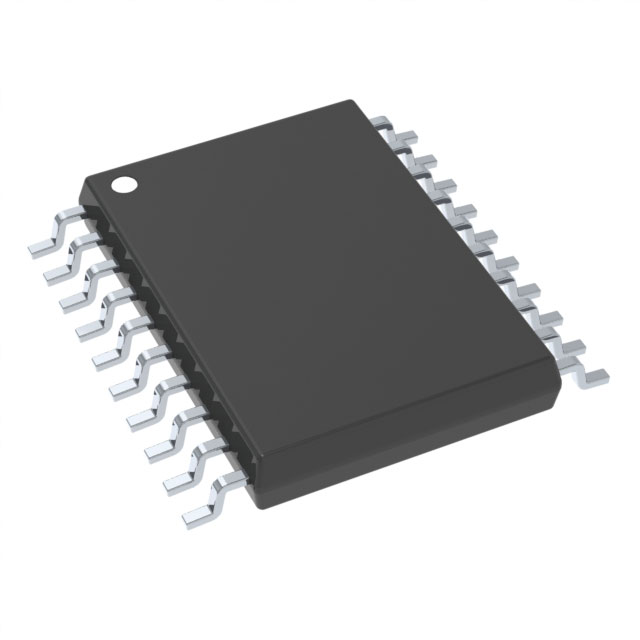

PIC16F84AT-20E/SS
lmages are for reference only.PIC16F84AT-20E/SS
IC MCU 8BIT 1.75KB FLASH 20SSOP
Datasheet20-SSOP (0.209", 5.30mm Width)
76,471 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB (1K x 14) FLASH 20-SSOP
PIC16F84AT-20E/SS
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Microchip Technology |
| Series | PIC® 16F |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 13 |
| Program Memory Size | 1.75KB (1K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 64 x 8 |
| RAM Size | 68 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Base Product Number | PIC16F84 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | PIC16F84AT-20E/SO | PIC16F84AT-04/SO | PIC16F84AT-04/SS | PIC16F84AT-04E/SO |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 8BIT 1.75KB FLASH 18SOIC | IC MCU 8BIT 1.75KB FLASH 18SOIC | IC MCU 8BIT 1.75KB FLASH 20SSOP | IC MCU 8BIT 1.75KB FLASH 18SOIC |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
