Product CatalogPart Number
PJC138K_R1_00001
Manufacturer
Panjit International Inc.Description
SOT-323, MOSFET
Datasheet
DatasheetPackage
SC-70, SOT-323
In Stock
48,454 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PJC138K_R1_00001
PJC138K_R1_00001
lmages are for reference only.Payment Methods
Delivery Services

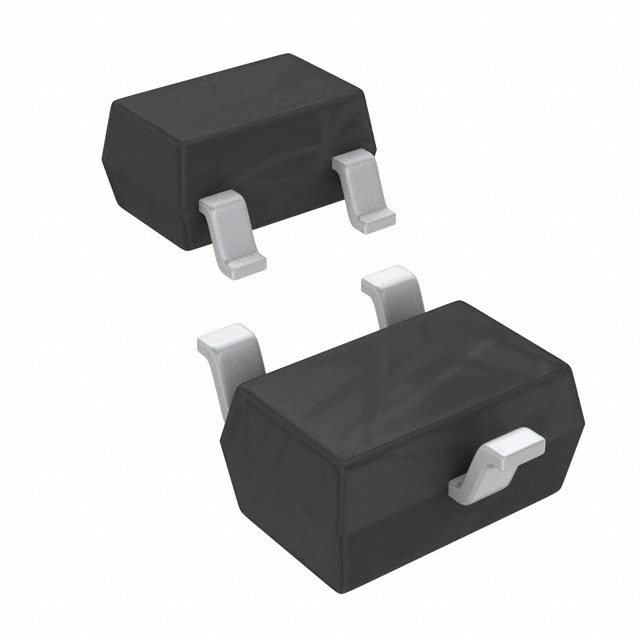

N-Channel 50 V 360mA (Ta) 236mW (Ta) Surface Mount SOT-323
Quick Inquiry
PJC138K_R1_00001
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 360mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 236mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-323 |
| Package / Case | SC-70, SOT-323 |
| Base Product Number | PJC138K |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
