Product CatalogPart Number
PJT004A0X3-SRDZ
Manufacturer
OmniOn Power™Description
4 A NON-ISOLATED DCDC CONVERTER,
Datasheet
DatasheetPackage
17-SMD Module
In Stock
11,653 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PJT004A0X3-SRDZ
PJT004A0X3-SRDZ
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.51 ~ 5.5V 4A 4.5V - 14.4V Input
Quick Inquiry
PJT004A0X3-SRDZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | PicoDLynx™ II |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14.4V |
| Voltage - Output 1 | 0.51 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, PMBus™, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 94.6% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 17-SMD Module |
| Size / Dimension | 0.48" L x 0.48" W x 0.30" H (12.2mm x 12.2mm x 7.5mm) |
| Supplier Device Package | 17-SMD |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

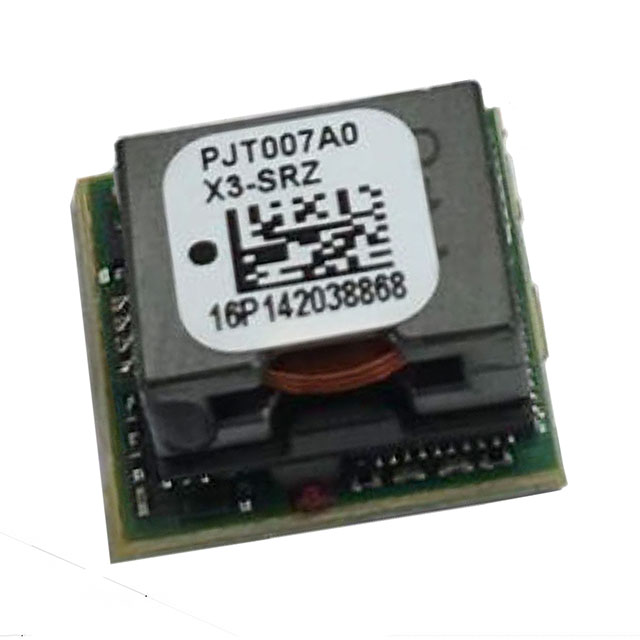

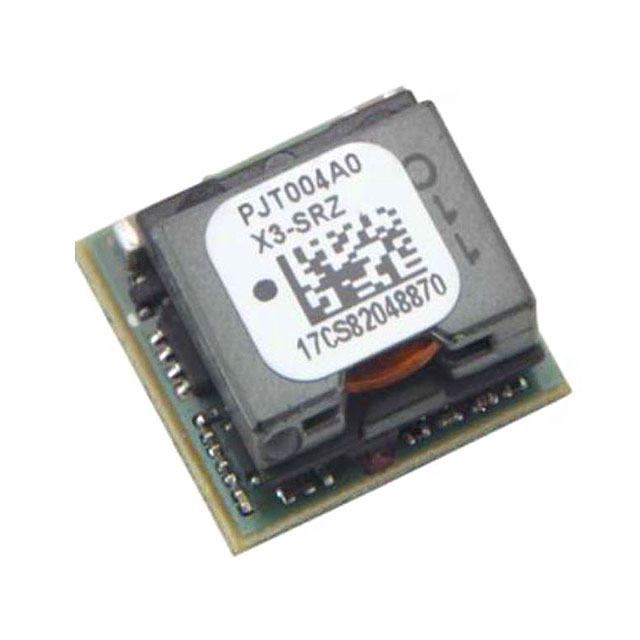

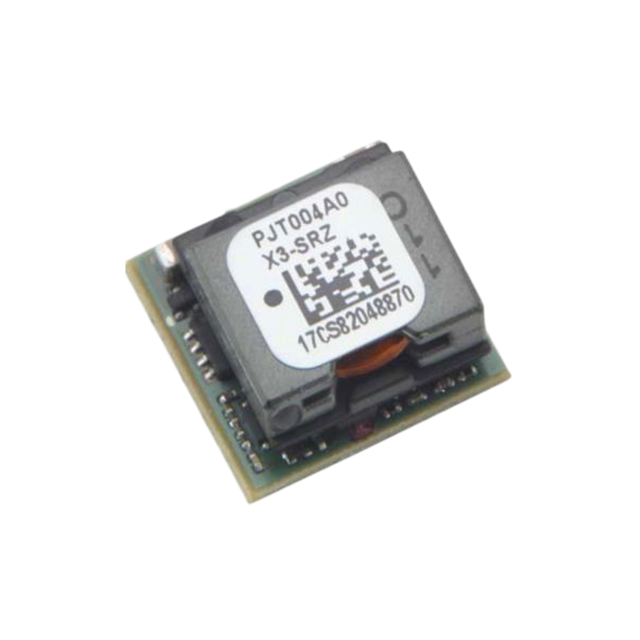

| Part Number | PJT004A0X3-SRZ | PJT004A0X43-SRZ | PJT007A0X3-SRDZ | PJT007A0X3-SRZ |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 0.51-5.5V | DC DC CONVERTER 0.51-5.5V | 7 A NON-ISOLATED DCDC CONVERTER, | DC DC CONVERTER 0.51-5.5V |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
