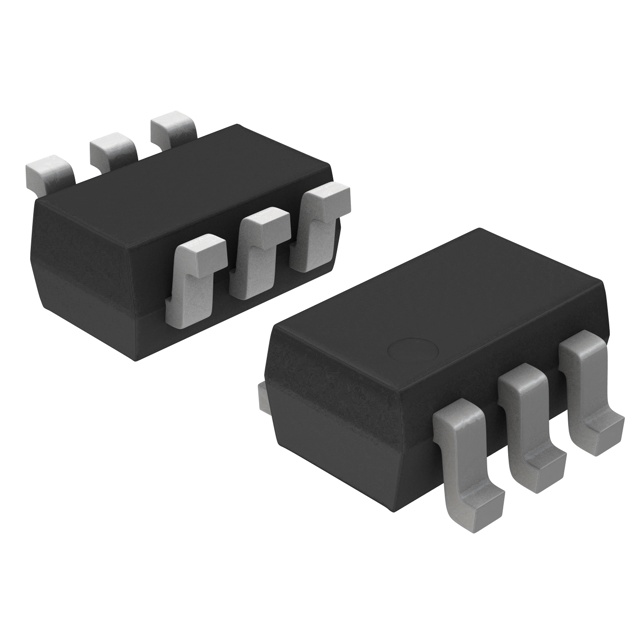

Mosfet Array 20V 500mA (Ta) 350mW (Ta) Surface Mount SOT-363
PJT7808_R2_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | EMO Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 67pF @ 10V |
| Power - Max | 350mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | PJT7808 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PJT7800_R1_00001 | PJT7801_R1_00001 | PJT7802-AU_R1_000A1 | PJT7802_R1_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 20V 1A SOT363 | MOSFET 2P-CH 20V 0.7A SOT363 | MOSFET 2N-CH 20V 0.5A SOT363 | MOSFET 2N-CH 20V 0.5A SOT363 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
