PK2W391MND2553

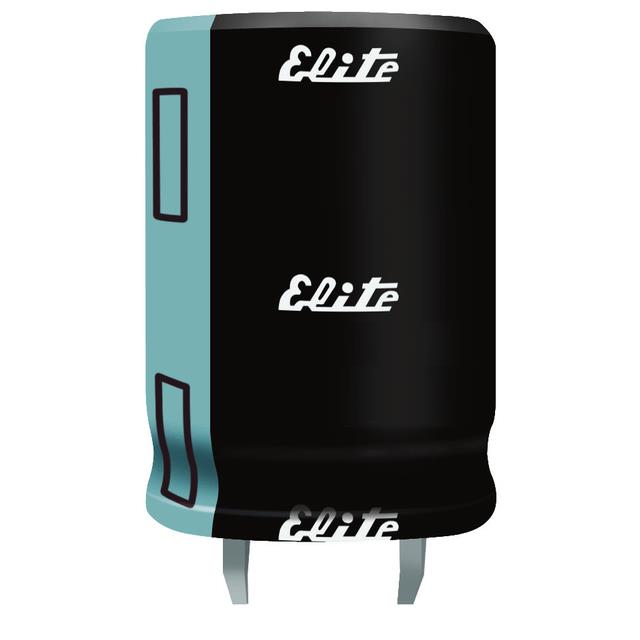

lmages are for reference only.PK2W391MND2553
CAP ALUM 390UF 20% 450V SNAP TH
DatasheetRadial, Can - Snap-In
41,882 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
390 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 480mOhm @ 120Hz 3000 Hrs @ 105°C
PK2W391MND2553
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | PK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 480mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.289 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.165" (55.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PK2W101MND2230RY | PK2W121MND2230 | PK2W121MND2230 | PK2W121MND2230R |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 100UF 20% 450V SNAP TH | CAP ALUM 120UF 20% 450V SNAP TH | CAP ALUM 120UF 20% 450V SNAP TH | CAP ALUM 120UF 20% 450V SNAP TH |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
