PLT0603Z2462LBTS

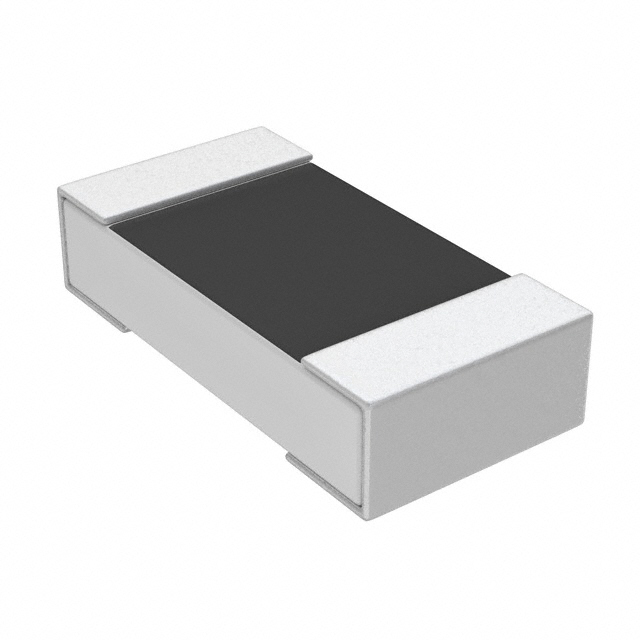

lmages are for reference only.PLT0603Z2462LBTS
RES SMD 24.6K OHM 0.15W 0603
Datasheet0603 (1608 Metric)
89,237 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.6 kOhms ±0.01% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
PLT0603Z2462LBTS
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | |
| Packaging | Strip |
| RoHS Status | RoHS non-compliant |
| Mfr | Vishay Dale Thin Film |
| Series | PLT |
| Resistance | 24.6 kOhms |
| Tolerance | ±0.01% |
| Power (Watts) | 0.15W |
| Composition | Thin Film |
| Features | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±5ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.064" L x 0.032" W (1.63mm x 0.81mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PLT0603Z2401LBTS | PLT0603Z2402LBTS | PLT0603Z2431LBTS | PLT0603Z2432LBTS |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RES SMD 2.4KOHM 0.01% 0.15W 0603 | RES SMD 24K OHM 0.01% 0.15W 0603 | RES SMD 2.43K OHM 0.15W 0603 | RES SMD 24.3K OHM 0.15W 0603 |
| Series | Vishay Dale Thin Film | |||
| Packaging | Strip |
