Product CatalogPart Number
PM1210-6R8J
Manufacturer
Bourns Inc.Description
FIXED IND 6.8UH 180MA 2 OHM SMD
Datasheet
DatasheetPackage
1210 (3225 Metric)
In Stock
46,966 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PM1210-6R8J
PM1210-6R8J
lmages are for reference only.Payment Methods
Delivery Services
6.8 µH Unshielded Drum Core, Wirewound Inductor 180 mA 2Ohm Max 1210 (3225 Metric)
Quick Inquiry
PM1210-6R8J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | PM1210 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 180 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2Ohm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 43MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Base Product Number | PM1210 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | PM1210-6R8J | PM1210-6R8J-RC | PM1210-680J | PM1210-680J |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 6.8UH 180MA 2 OHM SMD | FIXED IND 6.8UH 150MA 1.8OHM SMD | FIXED IND 68UH 50MA 9 OHM SMD | FIXED IND 68UH 50MA 9 OHM SMD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
PM1210-100J
Bourns Inc.
PM1210-100J-RC
Bourns Inc.
PM1210-101J
Bourns Inc.
PM1210-101J
Bourns Inc.
PM1210-101J-RC
Bourns Inc.
PM1210-120J
Bourns Inc.
PM1210-120J
Bourns Inc.
PM1210-120J-RC
Bourns Inc.

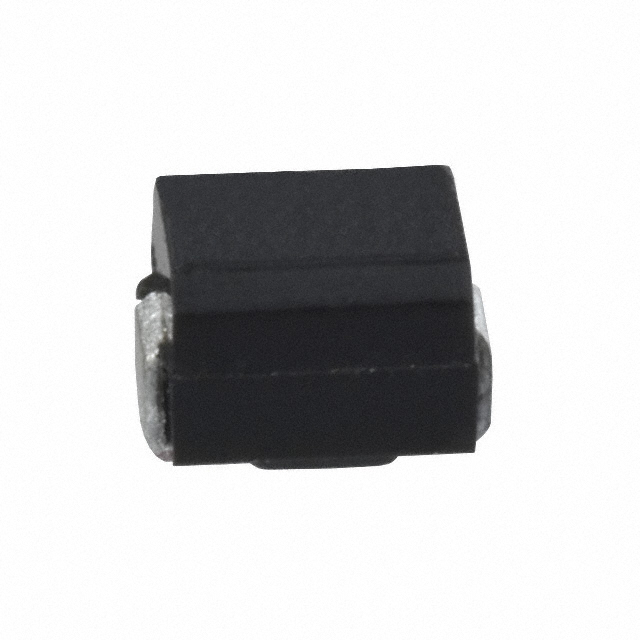

PM1210-121J
