Product CatalogPart Number
PM324FBAOSP
Manufacturer
Anderson Power Products, Inc.Description
POWERMOD 3X24 FEMALE STRAIGHT PC
Datasheet
DatasheetPackage
-
In Stock
46,002 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PM324FBAOSP
PM324FBAOSP
lmages are for reference only.Payment Methods
Delivery Services
24 Position Receptacle Connector 0.197" (5.00mm) Through Hole Gold
Quick Inquiry
PM324FBAOSP
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Anderson Power Products, Inc. |
| Series | PowerMod® |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket, Power |
| Style | Board to Board or Cable |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Insulation Color | Black |
| Insulation Height | 0.600" (15.24mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Operating Temperature | -55°C ~ 180°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mating Flange |
| Current Rating (Amps) | 30A |
| Voltage Rating | 600V |
| Applications | - |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Base Product Number | PM324FBA |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|

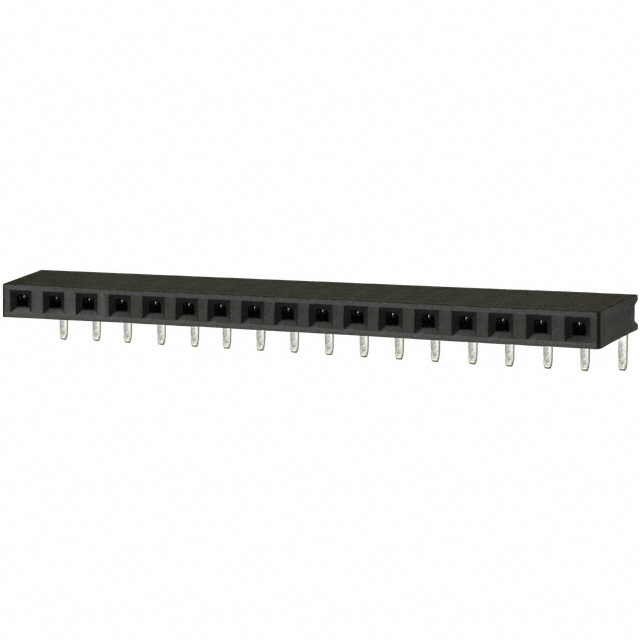

| Part Number | PHF-102-01-L-D | PTHF-106-02-G-Q-368 | PPTC171LGBN-RC | PHF-101-01-L-S |
