PMEG100T080ELPE-QZ
lmages are for reference only.PMEG100T080ELPE-QZ
DIODE SCHOTTKY 100V 8A CFP15B
DatasheetTO-277, 3-PowerDFN
38,215 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 100 V 8A Surface Mount CFP15B
PMEG100T080ELPE-QZ
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 810 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 19 ns |
| Current - Reverse Leakage @ Vr | 4 µA @ 100 V |
| Capacitance @ Vr, F | 680pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | CFP15B |
| Operating Temperature - Junction | 175°C |
| Base Product Number | PMEG100 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

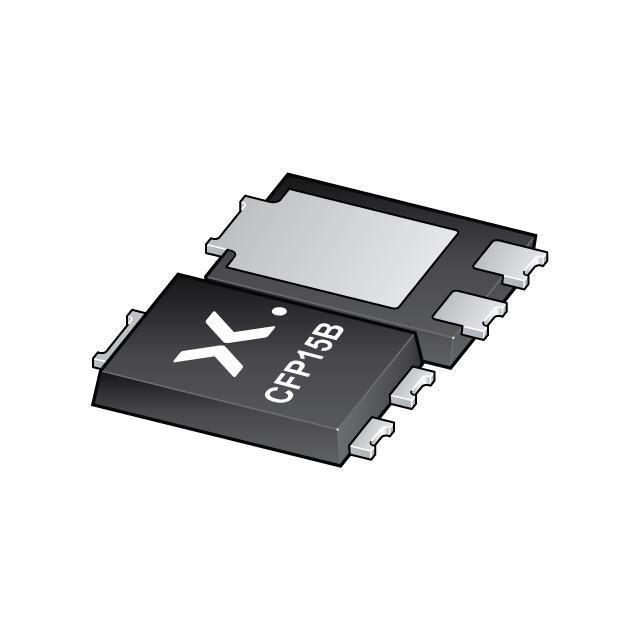

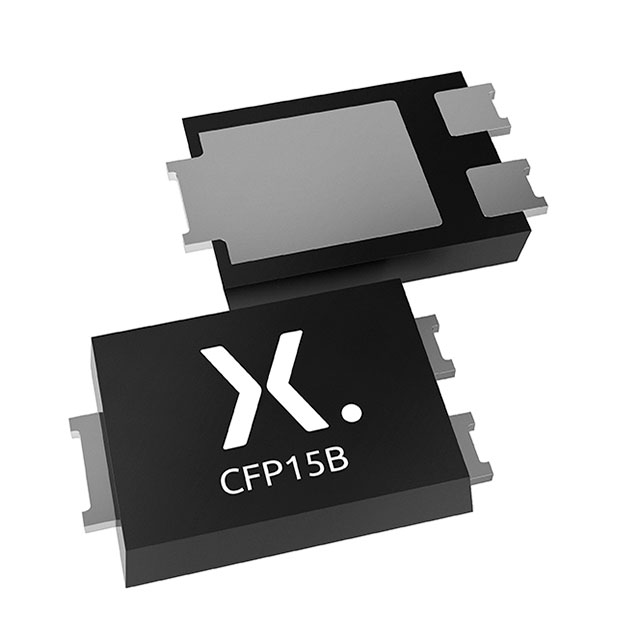

| Part Number | PMEG100T080ELPEZ | PMEG100T030ELPE-QZ | PMEG100T030ELPEZ | PMEG100T050ELPE-QZ |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 100V 8A CFP15B | DIODE SCHOTTKY 100V 3A CFP15B | DIODE SCHOTTKY 100V 3A CFP15B | DIODE SCHOTTKY 100V 5A CFP15B |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
