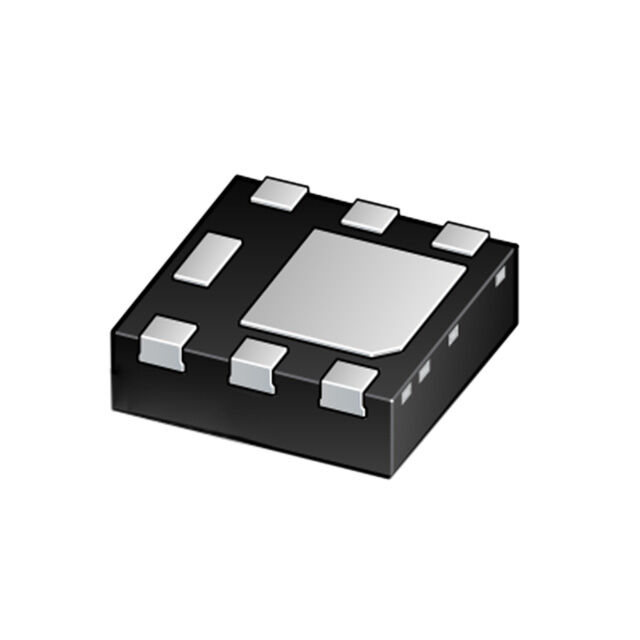

P-Channel 20 V 10.5A (Ta) 1.9W (Ta), 12.5W (Tc) Surface Mount DFN2020M-6
PMPB09R5TPX
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | TrenchMOS™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 10.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1730 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.9W (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN2020M-6 |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | PMPB09R5VPX | PMPB07R0UNAX | PMPB07R0UNX | PMPB07R3ENAX |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PMPB09R5VP - 12 V, P-CHANNEL TRE | SMALL SIGNAL MOSFET FOR MOBILE | MOSFET N-CH 20V 11.6A DFN2020M-6 | SMALL SIGNAL MOSFET FOR MOBILE |
| Series | TrenchMOS™ | TrenchMOS™ | TrenchMOS™ | TrenchMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
