PMR100HZPJV2L2

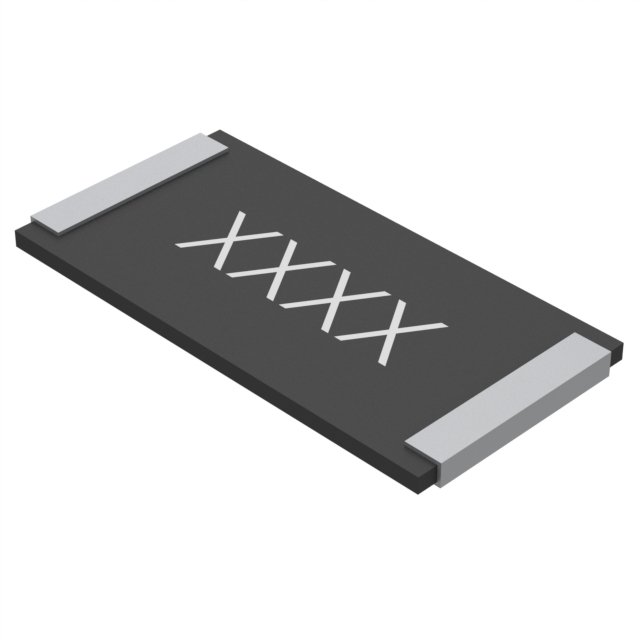

lmages are for reference only.PMR100HZPJV2L2
RES 0.0022 OHM 5% 2W 2512
Datasheet2512 (6432 Metric)
23,957 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 mOhms ±5% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
PMR100HZPJV2L2
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Rohm Semiconductor |
| Series | PMR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 2.2 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.019" (0.47mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PMR100HZPJV2L0 | PMR100HZPJV10L | PMR100HZPJV1L0 | PMR100HZPJV1L5 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.002 OHM 5% 2W 2512 | RES 0.01 OHM 5% 2W 2512 | RES 0.001 OHM 5% 2W 2512 | RES 0.0015 OHM 5% 2W 2512 |
| Series | Rohm Semiconductor | Rohm Semiconductor | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
