PMV100ENEAR

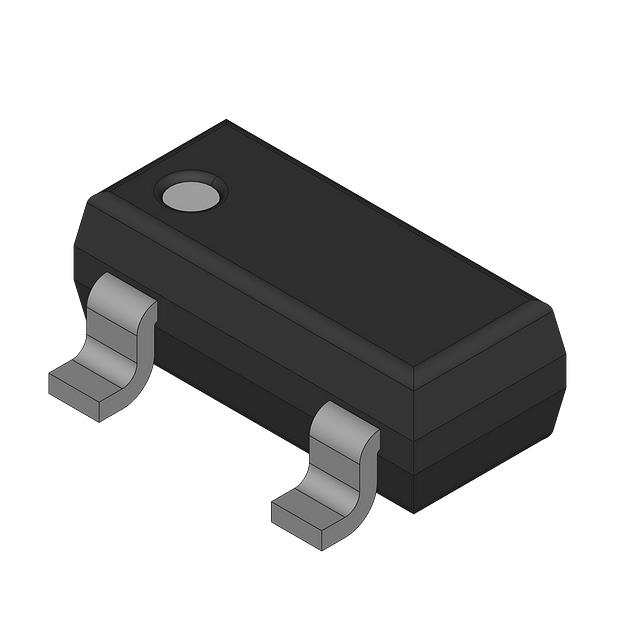

lmages are for reference only.PMV100ENEAR
MOSFET N-CH 30V 3A TO236AB
DatasheetTO-236-3, SC-59, SOT-23-3
69,119 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 3A (Ta) 460mW (Ta), 4.5W (Tc) Surface Mount TO-236AB
PMV100ENEAR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 72mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 160 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 460mW (Ta), 4.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-236AB |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | PMV100 |
| Gate Charge (Qg) (Max) @ Vgs | 5.5 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | PMV100EPAR | PMV100XPEA215 | PMV100XPEAR | PJQ4465AP-AU_R2_000A1 |
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 60V 2.2A TO236AB | NEXPERIA PMV100 - P-CHANNEL MOSF | MOSFET P-CH 20V 2.4A TO236AB | 60V P-CHANNEL ENHANCEMENT MODE M |
| Series | TrenchMOS™ | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
