PMX800UPEZ
Manufacturer
Nexperia USA Inc.Description

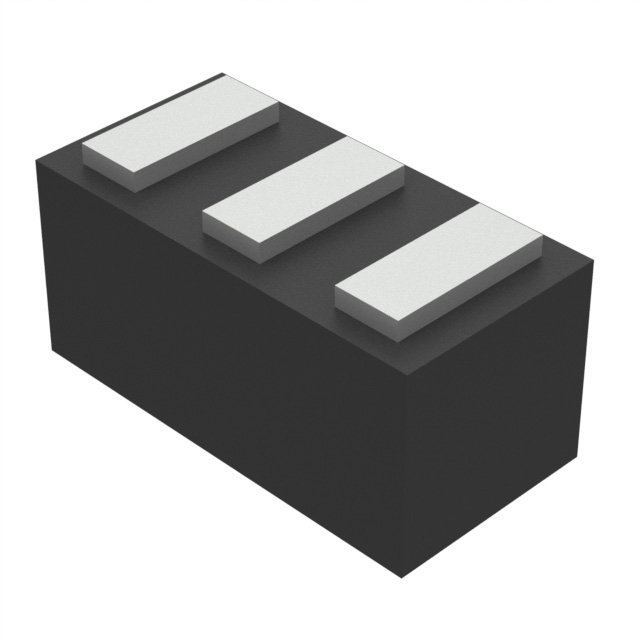

PMX800UPE/SOT8013/DFN0603-3
Datasheet
DatasheetPackage
0201 (0603 Metric)
In Stock
25,226 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PMX800UPEZ
PMX800UPEZ
lmages are for reference only.Payment Methods
Delivery Services
P-Channel 30 V 900mA (Ta) 300mW (Ta), 4.7W (Tc) Surface Mount DFN0603-3 (SOT8013)
Quick Inquiry
PMX800UPEZ
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 900mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 600mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 124 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 300mW (Ta), 4.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN0603-3 (SOT8013) |
| Package / Case | 0201 (0603 Metric) |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 2.1 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
