PQ20RX11
lmages are for reference only.PQ20RX11
IC REG LINEAR POS ADJ 1A TO220-5
DatasheetTO-220-5 Formed Leads
21,341 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A TO-220-5
PQ20RX11
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 8 mA |
| PSRR | 45dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -20°C ~ 80°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 |
| Base Product Number | PQ20 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

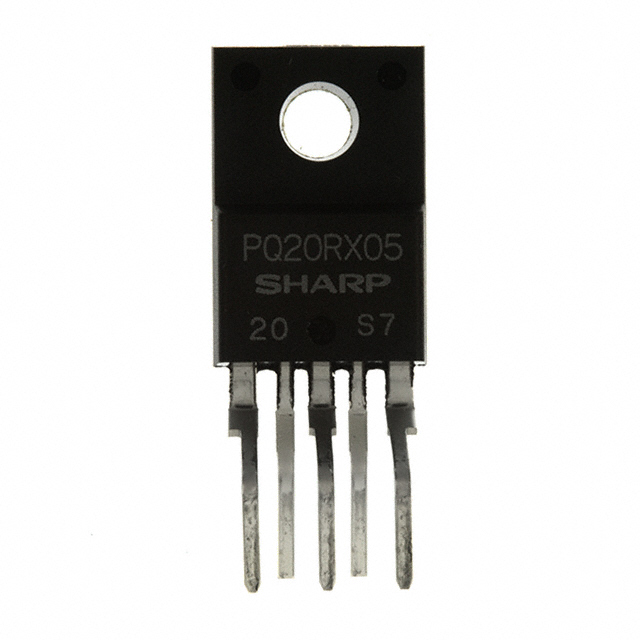

| Part Number | PQ20RX05 | PQ20RX11J00H | PQ010FZ5MZZ | PQ010GN01ZPH |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | IC REG LIN POS ADJ 500MA TO220-5 | IC REG LINEAR POS ADJ 1A TO220-5 | IC REG LINEAR 1V 500MA SC63 | IC REG LINEAR 1V 1A SC63 |
| Series | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
