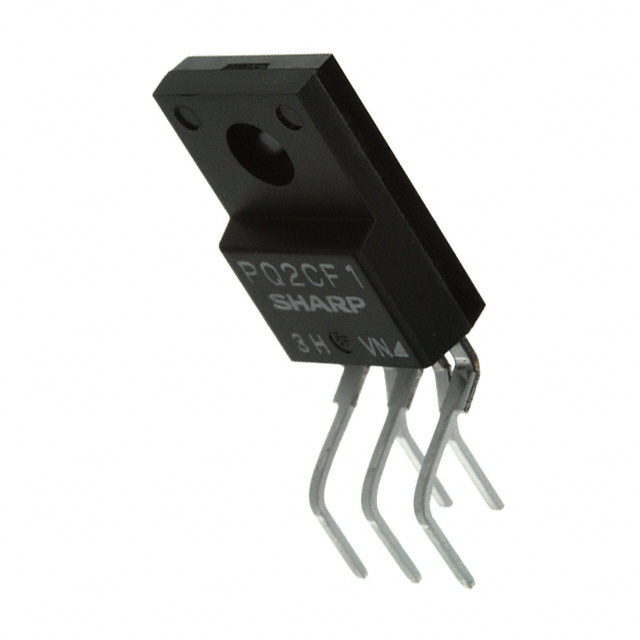

PQ2CF1
lmages are for reference only.PQ2CF1
IC REG BST FLYBCK ADJ 2.5A TO220
DatasheetTO-220-5 Formed Leads
61,955 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost, Flyback Switching Regulator IC Positive Adjustable 4.5V 1 Output 2.5A (Switch) TO-220-5 Formed Leads
PQ2CF1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 4.5V |
| Voltage - Output (Max) | 35V (Switch) |
| Current - Output | 2.5A (Switch) |
| Frequency - Switching | 50kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220 |
| Base Product Number | PQ2CF1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

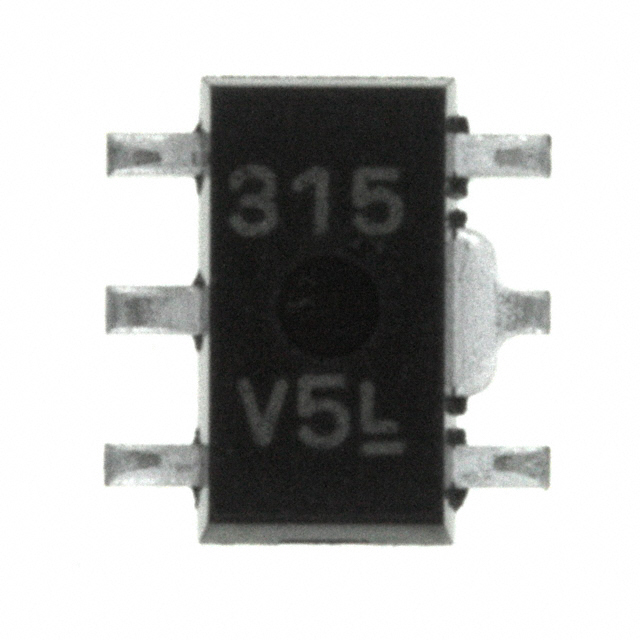

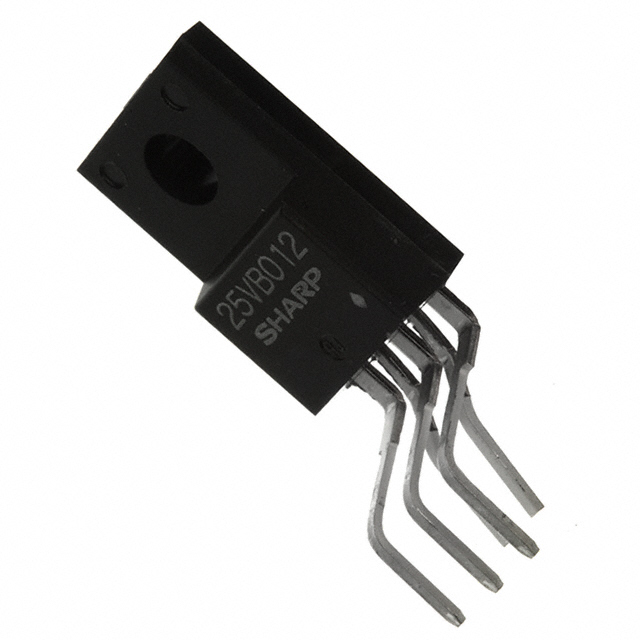

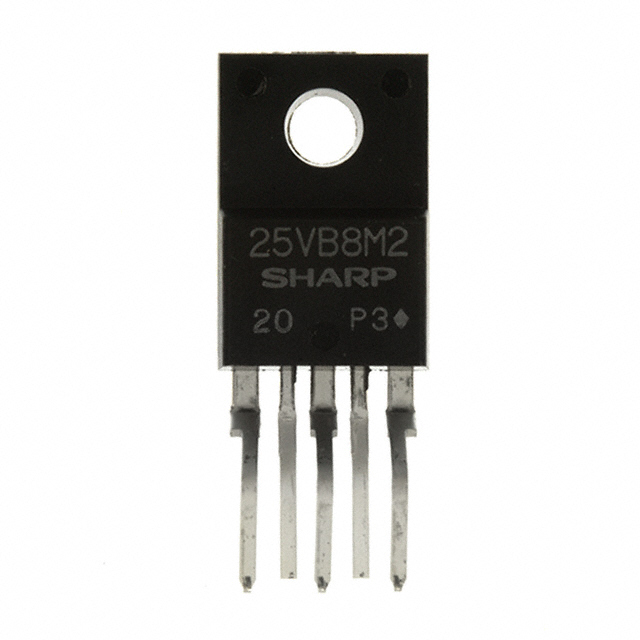

| Part Number | PQ2CF1J0000H | PQ25VB012FZ | PQ25VB8M2FZ | PQ2L3152MSPQ |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | IC REG BST FLYBCK ADJ 2.5A TO220 | IC REG LINEAR POS ADJ 1A TO220-5 | IC REG LIN POS ADJ 800MA TO220-5 | IC REG LINEAR 1.5V/3.3V SOT89 |
| Series | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| Packaging | Tube | Tube | Tube | Cut Tape (CT) |
