PRD-11DY0-125
lmages are for reference only.PRD-11DY0-125
RELAY GEN PURPOSE DPDT 25A 125V
Datasheet-
36,085 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 125VAC Coil Chassis Mount
PRD-11DY0-125
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PRD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 125VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 600VAC, 125VDC - Nom |
| Load - Max Switching | - |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -55°C ~ 45°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | PRD-11DY0 |
| Product Attribute |  |
 |
|
 |

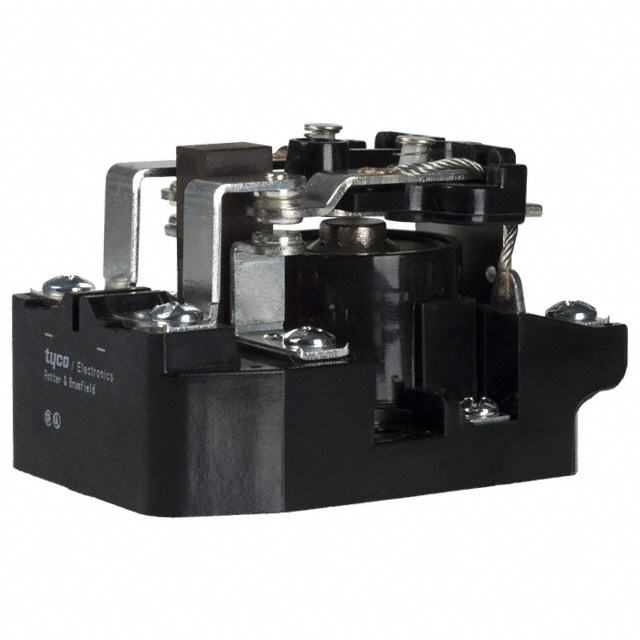

| Part Number | PRD-11DY0-12 | PRD-11DY0-24 | PRD-11DF0-110 | PRD-11DG0-12 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 25A 12V | RELAY GEN PURPOSE DPDT 25A 24V | POWER RELAY ASSEMBLY | RELAY GEN PURPOSE DPDT 30A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
