PRD-3DP4-24
lmages are for reference only.PRD-3DP4-24
RELAY GEN PURPOSE SPST 50A 24V
Datasheet-
64,022 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (DM) (1 Form X) 24VDC Coil Chassis Mount
PRD-3DP4-24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PRD |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 600VAC, 125VDC - Nom |
| Load - Max Switching | - |
| Coil Current | 84 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -55°C ~ 80°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 288 Ohms |
| Base Product Number | PRD-3DP4 |
| Product Attribute |  |
|
 |
|

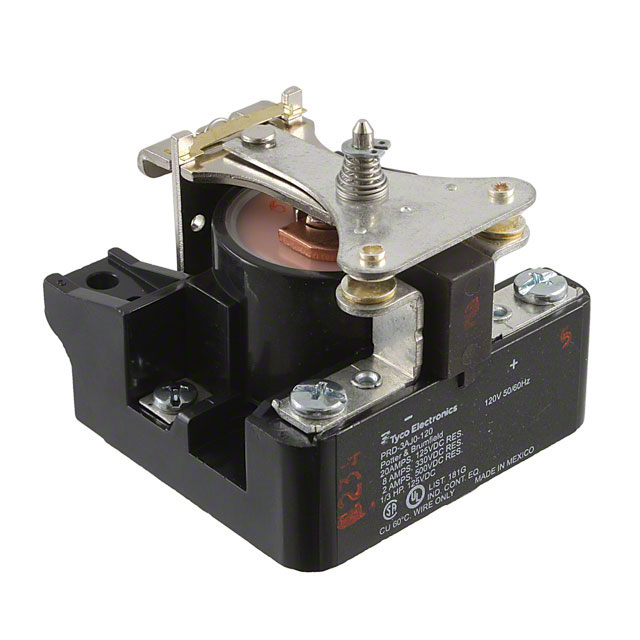

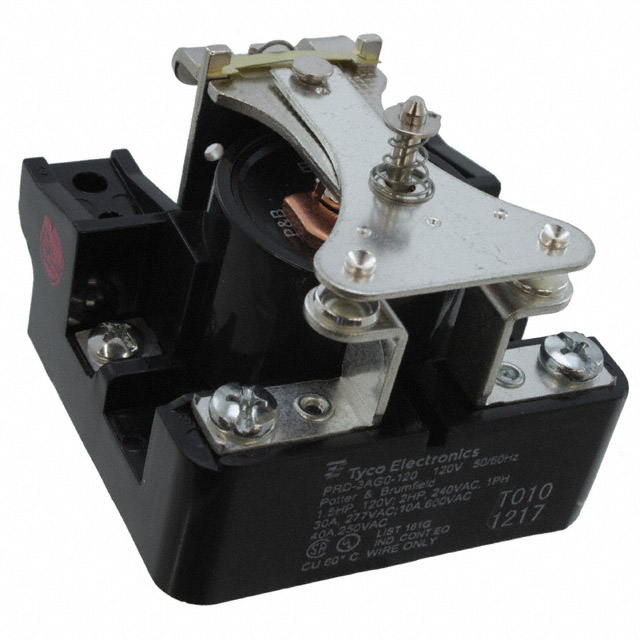

| Part Number | PRD-3AG0-120 | PRD-3AG0-24 | PRD-3AJ0-120 | PRD-3AJ3-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 30A 120V | RELAY GEN PURPOSE SPST 30A 24V | RELAY GEN PURPOSE SPST 20A 120V | RELAY GEN PURPOSE SPST 20A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Bulk | Tray | Bulk |
