PS2P-ARC-CE-M009-A-45S-05

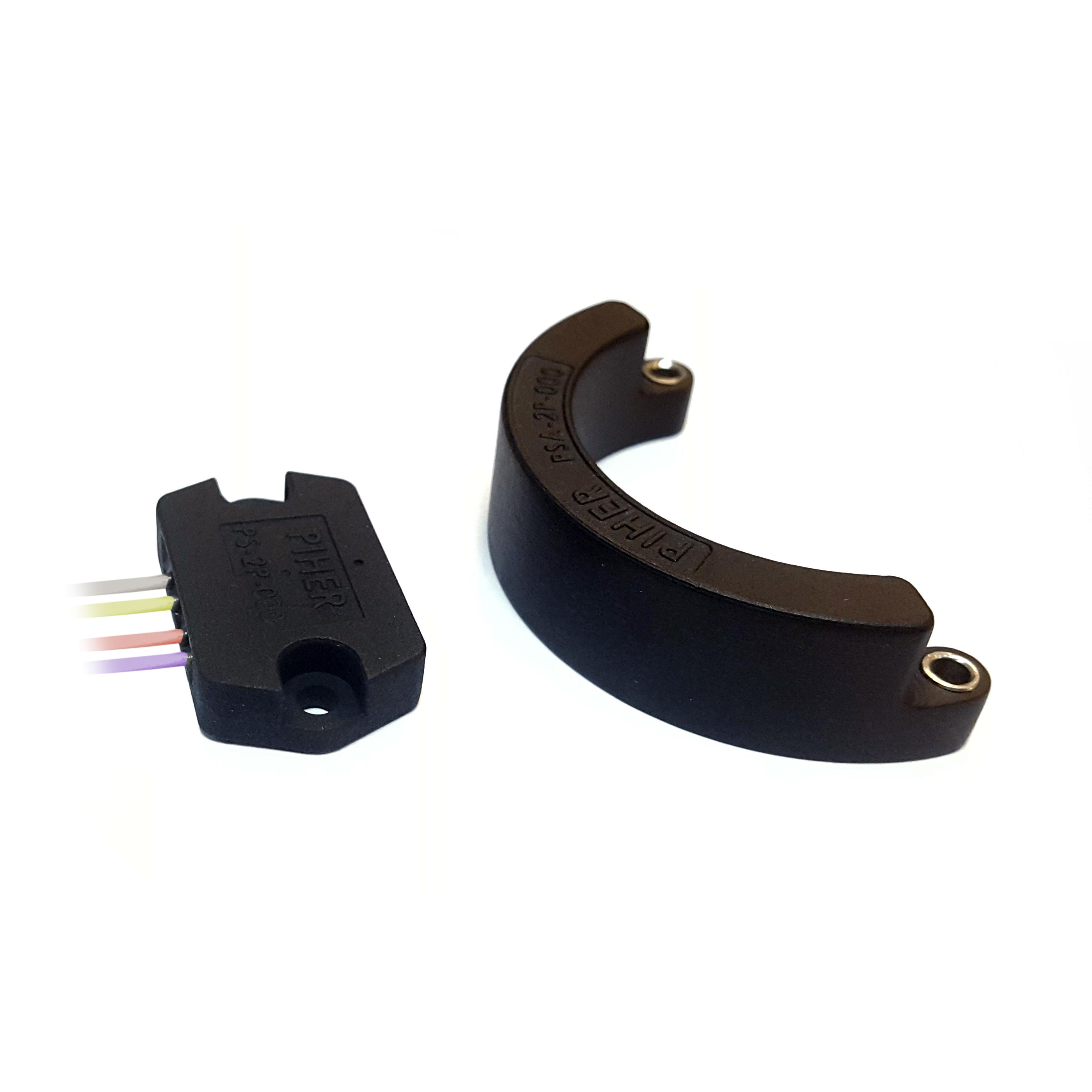

lmages are for reference only.PS2P-ARC-CE-M009-A-45S-05
ARC ANGULAR SENSOR, 12 BIT REDUN
DatasheetBox with Wire Leads
81,730 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Magnetoresistive Sensor Angle, Linear External Magnet, Not Included Wire Leads
PS2P-ARC-CE-M009-A-45S-05
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PS2P-ARC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Linear |
| Technology | Magnetoresistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 45° |
| Linear Range | 0 ~ 2.00mm (0 ~ 0.08") |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PS2P-ARC-CE-M009-A-090S-05 | PS2P-ARC-CE-M009-A-110S-05 | PS2P-ARC-CE-M008-A-090S-05 | PS2P-ARC-CE-M008-A-110S-05 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PLAY RESISTANT ARC POSITION SENS | ARC ANGULAR SENSOR, 12 BIT, ABSO | PLAY RESISTANT ARC POSITION SENS | ARC ANGULAR SENSOR, 12 BIT, ABSO |
| Series | PS2P-ARC | PS2P-ARC | PS2P-ARC | PS2P-ARC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
