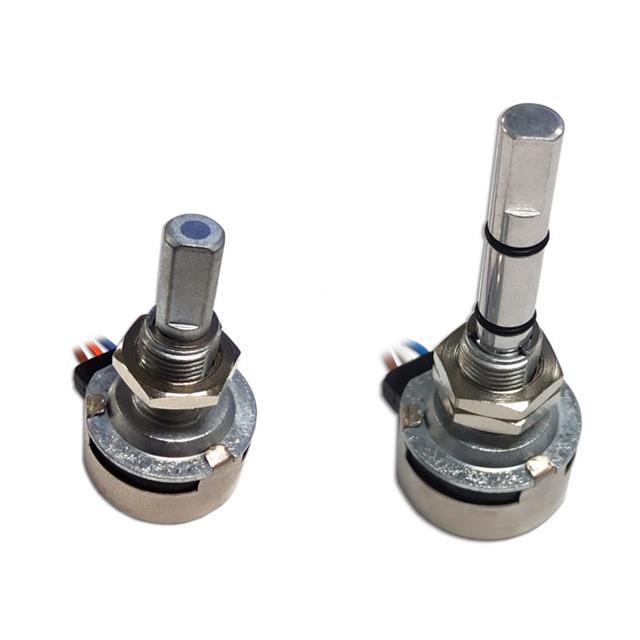

Hall Effect Sensor Angle, Linear, Rotary Flatted Shaft Wire Leads
PSE-360-A-ERA120-S-05
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PSE-360 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Linear, Rotary |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 120°, 0° ~ 360° |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Flatted Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Panel Mount |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Package / Case | Module, Flatted Shaft |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PSE-360-A-ERA090-S-05 | PSE-360-A-ERA180-S-05 | PSE-360-A-ERA270-S-05 | PSE-360-A-ERA360-S-05 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PANEL MOUNT HALL-EFFECT 90 DEGRE | PANEL MOUNT HALL-EFFECT 180 DEGR | PANEL MOUNT HALL-EFFECT 270 DEGR | PANEL MOUNT HALL-EFFECT 360 DEGR |
| Series | PSE-360 | PSE-360 | PSE-360 | PSE-360 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
