PST360G2-2OO-C0002-ERA360-RE
lmages are for reference only.PST360G2-2OO-C0002-ERA360-RE
HOLLOW-SHAFT ANGULAR SENSOR, RED
DatasheetBox with Wire Leads
67,155 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle, Linear, Rotary Hole for Shaft Wire Leads
PST360G2-2OO-C0002-ERA360-RE
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PST360G2 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Linear, Rotary |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360° |
| Linear Range | - |
| Output | CAN |
| Output Signal | Clockwise Increase |
| Actuator Type | Hole for Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

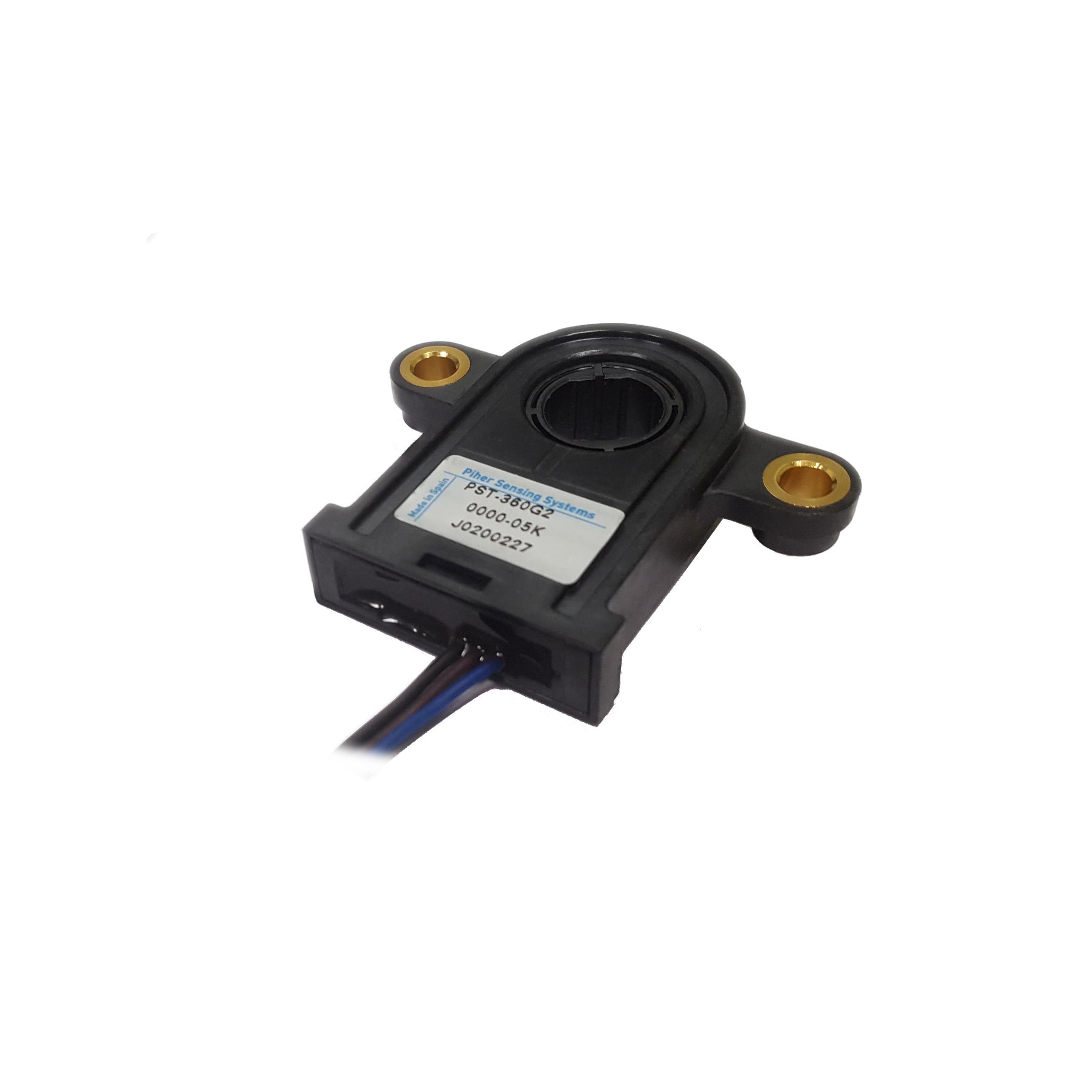

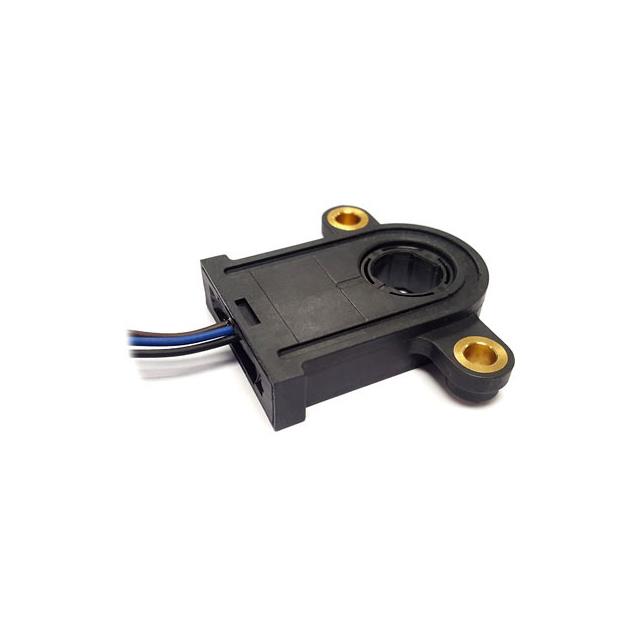

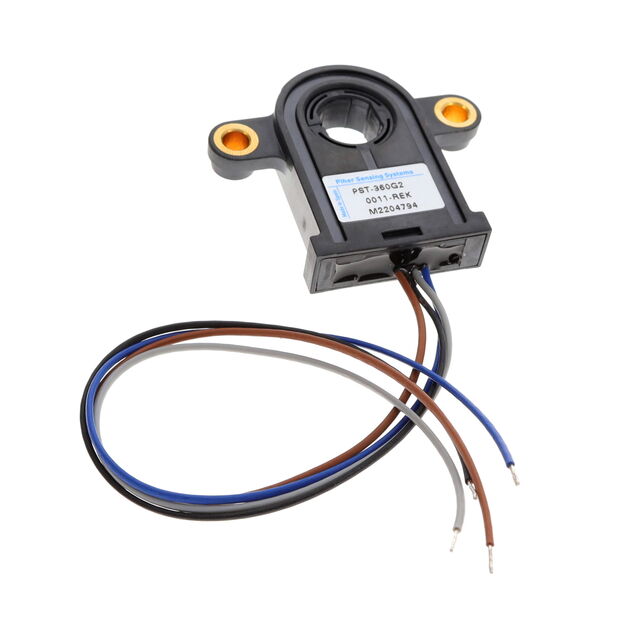

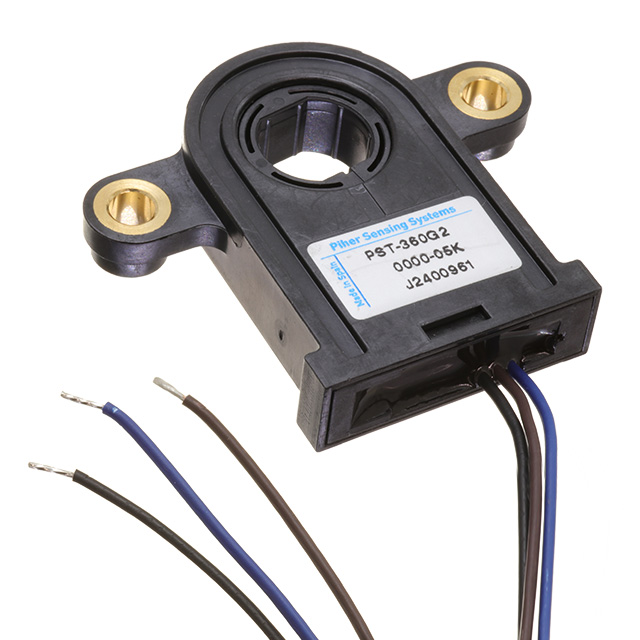

| Part Number | PST360G2-2OO-C0025-ERA090-REK | PST360G2-2OO-C0036-ERA180-REK | PST360G2-1A-C0000-ERA360-05K | PST360G2-1A-C0000-ERA360-RE |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HALL-EFFECT THROUGH-SHAFT ROTARY | HALL-EFFECT THROUGH-SHAFT ROTARY | SENSOR ANGLE 360DEG WIRE LEADS | SENSOR ANGLE 360DEG WIRE LEADS |
| Series | PST-360 | PST-360 | PST360G2 | PST360G2 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
