PT10LH01-155A2020
lmages are for reference only.PT10LH01-155A2020
TRIMMER 1.5M OHM 0.15W PC PIN
Datasheet-
31,351 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 MOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
PT10LH01-155A2020
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT-10 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Resistance | 1.5 MOhms |
| Power (Watts) | 0.15W |
| Tolerance | ±20% |
| Temperature Coefficient | - |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia x 0.476" H (10.30mm x 12.10mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

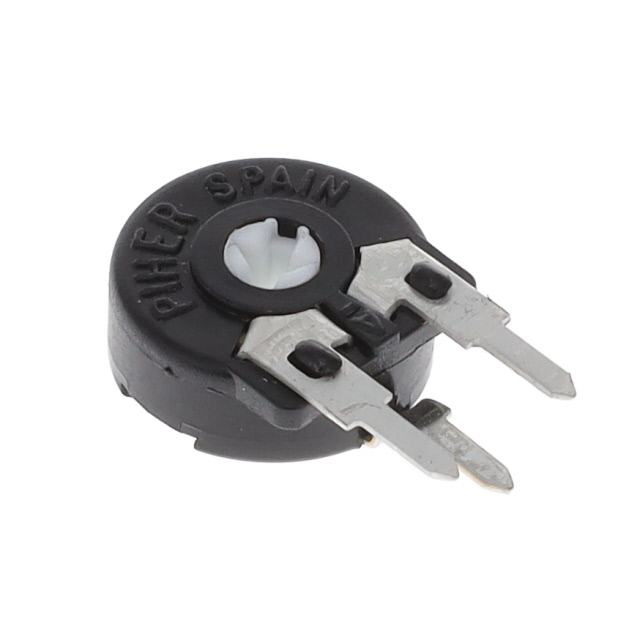

| Part Number | PT10LH01-101A2020 | PT10LH01-101A2020-PM-S | PT10LH01-101A2020-S | PT10LH01-102A2020-PM-S |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 100OHM 0.15W PC PIN SIDE | TRIMMER 100OHM 0.15W PC PIN SIDE | TRIMMER 100OHM 0.15W PC PIN SIDE | TRIMMER 1K OHM 0.15W PC PIN SIDE |
| Series | PT-10 | PT10 | PT10 | PT10 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
