PT10MH01-502A2020-PM-S
lmages are for reference only.PT10MH01-502A2020-PM-S
TRIMMER 5K OHM 0.15W PC PIN SIDE
Datasheet-
73,700 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
PT10MH01-502A2020-PM-S
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT10 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 5 kOhms |
| Power (Watts) | 0.15W |
| Tolerance | ±20% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia (10.30mm) |
| Base Product Number | PT10MH01 |
| Product Attribute |  |
 |
 |
|

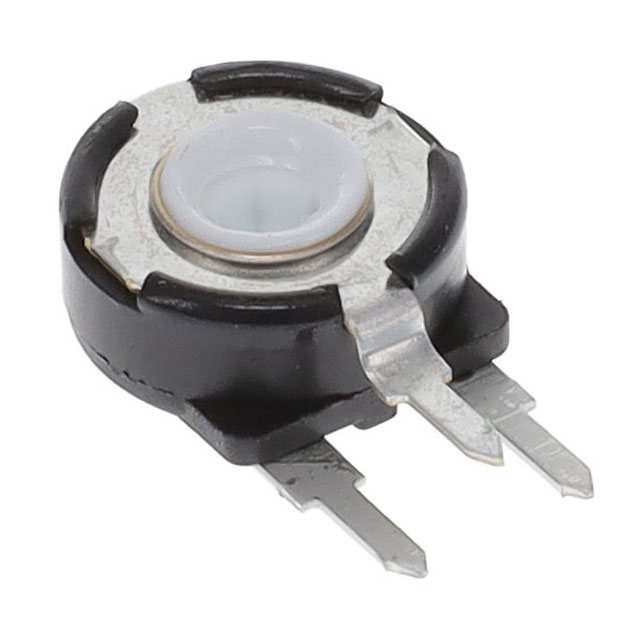

| Part Number | PT10MH01-502A2020 | PT10MH01-101A2020-S | PT10MH01-102A2020-S | PT10MH01-103A2020 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |

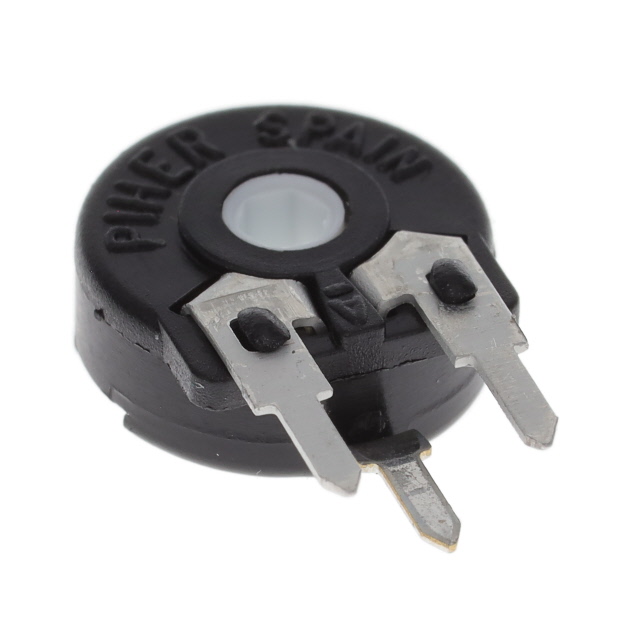

| Description | TRIMMER 5K OHM 0.15W PC PIN SIDE | TRIMMER 100OHM 0.15W PC PIN SIDE | TRIMMER 1K OHM 0.15W PC PIN SIDE | TRIMMER 10KOHM 0.15W PC PIN SIDE |
| Series | PT-10 | PT10 | PT10 | PT-10 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
