PT10YV10-103A2020-5-CR-S
lmages are for reference only.PT10YV10-103A2020-5-CR-S
TRIMMER 10K OHM 0.15W PC PIN TOP
Datasheet-
80,405 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
PT10YV10-103A2020-5-CR-S
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT10 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 10 kOhms |
| Power (Watts) | 0.15W |
| Tolerance | ±20% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia (10.30mm) |
| Base Product Number | PT10YV10 |
| Product Attribute |  |
 |
 |
 |

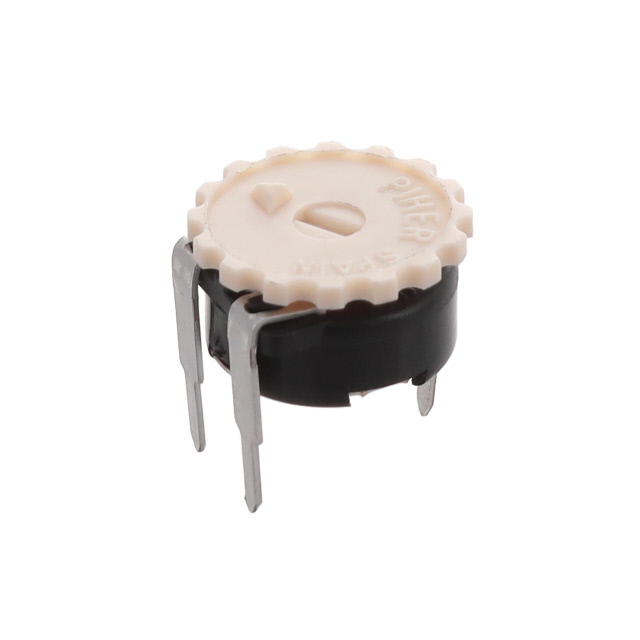

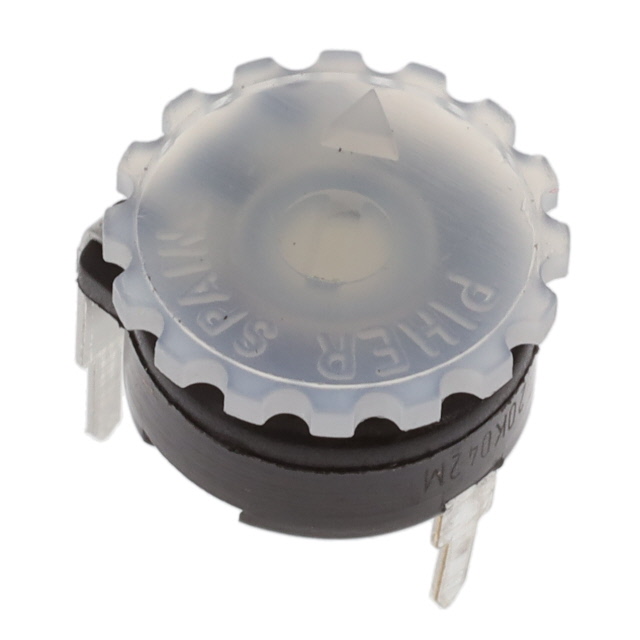

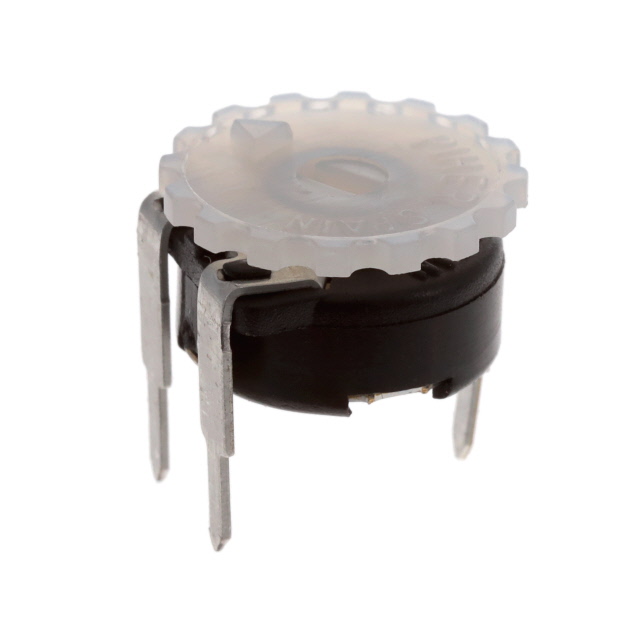

| Part Number | PT10YV10-105A2020-5-CR-S | PT10YV10-203A2020-5-S | PT10YV10-473A2020-5-S | PT10YV10-502A2020-5-CR-S |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 1M OHM 0.15W PC PIN TOP | TRIMMER 20K OHM 0.15W PC PIN TOP | TRIMMER 47K OHM 0.15W PC PIN TOP | TRIMMER 5K OHM 0.15W PC PIN TOP |
| Series | PT10 | PT10 | PT10 | PT10 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
