PT15NV17-103A2020-I-PM-S
lmages are for reference only.PT15NV17-103A2020-I-PM-S
TRIMMER 10K OHM 0.25W PC PIN TOP
Datasheet-
73,394 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
PT15NV17-103A2020-I-PM-S
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT15 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 10 kOhms |
| Power (Watts) | 0.25W, 1/4W |
| Tolerance | ±20% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.591" Dia (15.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|

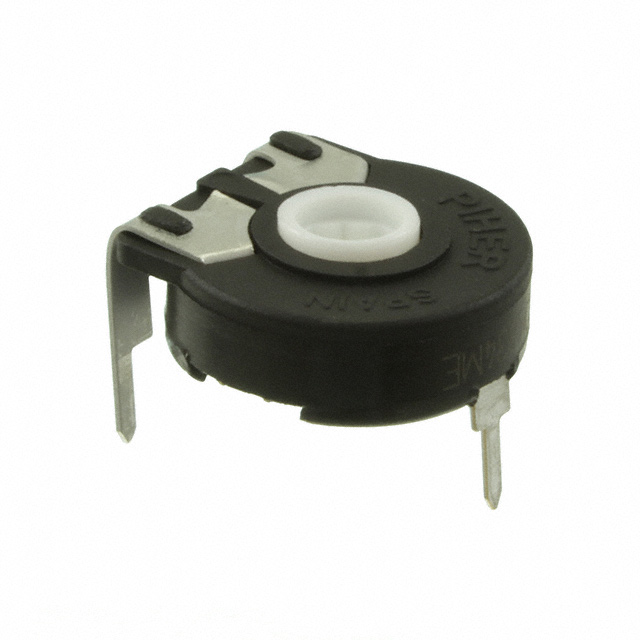

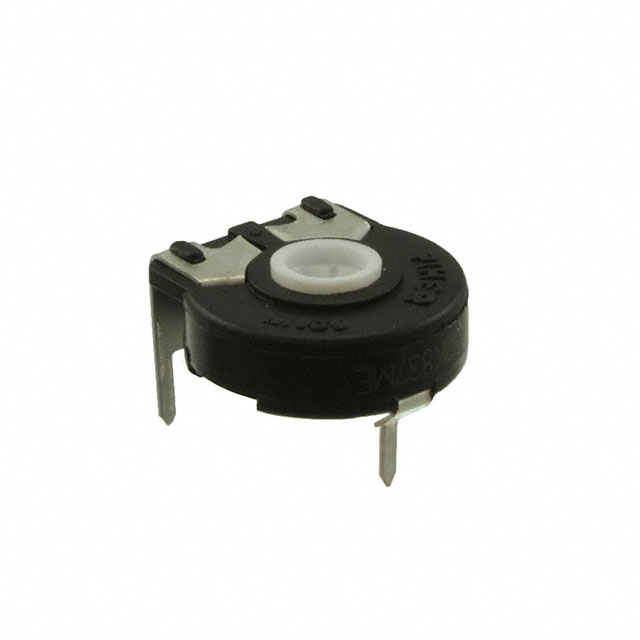

| Part Number | PT15NV17-103A2020-E-S | PT15NV17-103A2020-S | PT15NV17-102A2020-I-PM-S | PT15NV17-104A2020-I-PM-S |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 10K OHM 0.25W PC PIN TOP | TRIMMER 10K OHM 0.25W PC PIN TOP | TRIMMER 1K OHM 0.25W PC PIN TOP | TRIMMER 100KOHM 0.25W PC PIN TOP |
| Series | PT15 | PT15 | PT15 | PT15 |
| Packaging | Bulk | Bulk | Bulk |
