PTC10LV10-223A2020-PM
lmages are for reference only.PTC10LV10-223A2020-PM
TRIMMER 22K OHM 0.33W PC PIN TOP
Datasheet-
85,169 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 kOhms 0.33W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
PTC10LV10-223A2020-PM
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PTC-10 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 22 kOhms |
| Power (Watts) | 0.33W |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia (10.30mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

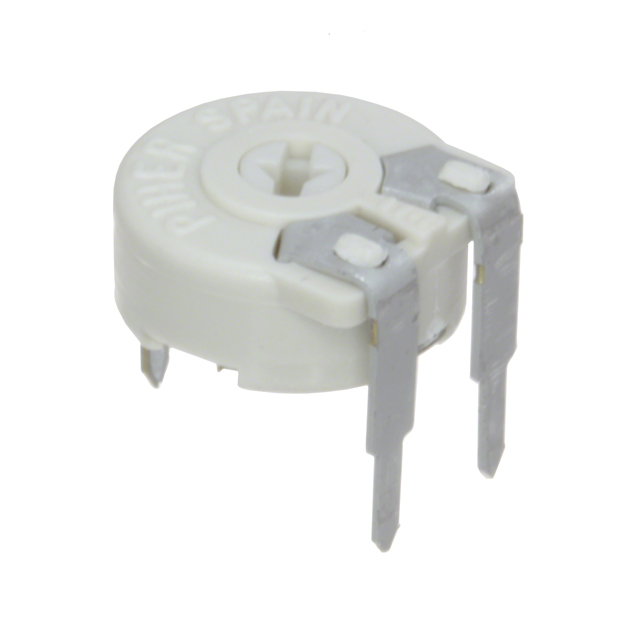

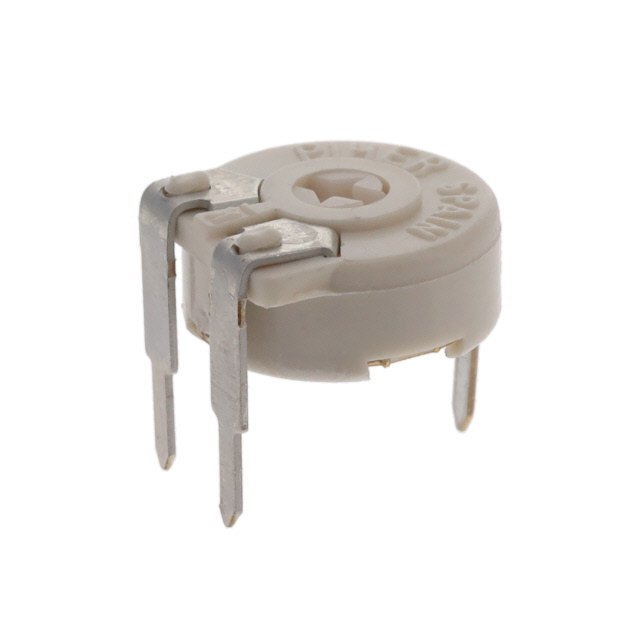

| Part Number | PTC10LV10-201A2020 | PTC10LV10-202A2020 | PTC10LV10-203A2020 | PTC10LV10-222A2020 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 200 OHM 0.33W PC PIN TOP | TRIMMER 2K OHM 0.33W PC PIN TOP | TRIMMER 20K OHM 0.33W PC PIN TOP | TRIMMER 2.2KOHM 0.33W PC PIN TOP |
| Series | PTC-10 | PTC-10 | PTC-10 | PTC-10 |
| Packaging | Bulk | Bulk | Bulk |
