PTH05060WAS
lmages are for reference only.PTH05060WAS
DC DC CONVERTER 0.8-3.6V 36W
Datasheet10-SMD Module
18,190 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 10A 4.5V - 5.5V Input
PTH05060WAS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | PTH05060W (36W) |
| Packaging | Tray |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 36 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
|
 |
 |

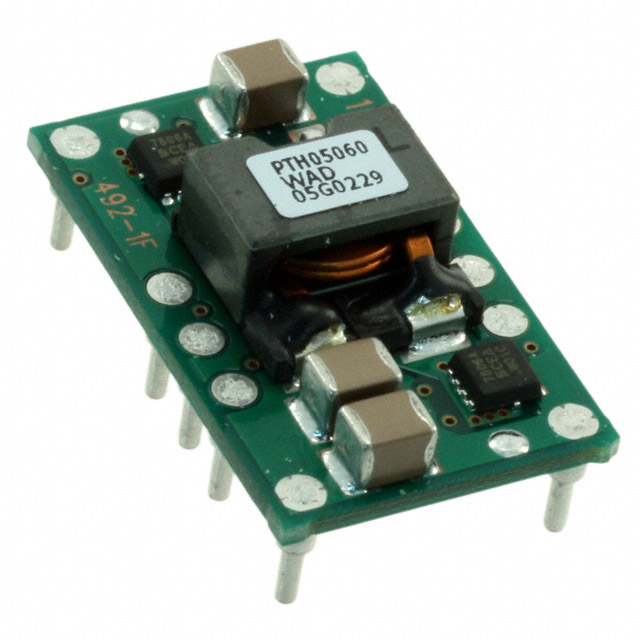

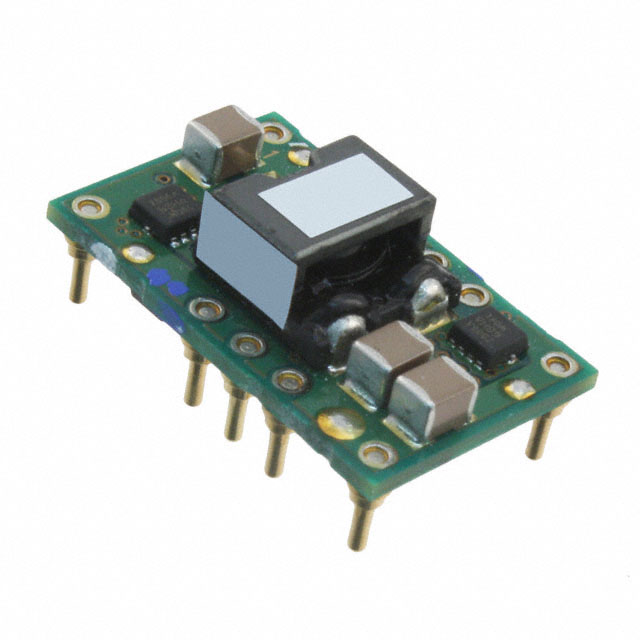

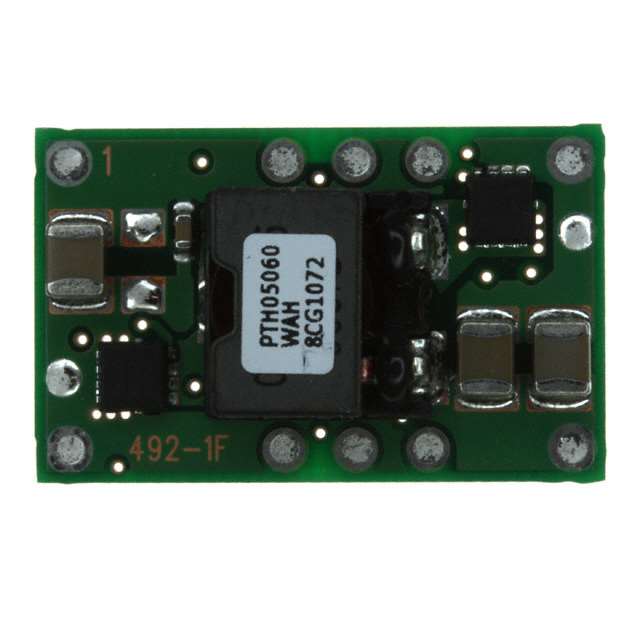

| Part Number | PTH05060WAD | PTH05060WAD | PTH05060WAH | PTH05060WAH |
| Manufacturer | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 0.8-3.6V 36W | DC DC CONVERTER 0.8-3.6V 10A | DC DC CONVERTER 0.8-3.6V 10A | DC DC CONVERTER 0.8-3.6V 36W |
| Series | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tray |
