PTH12040WAD

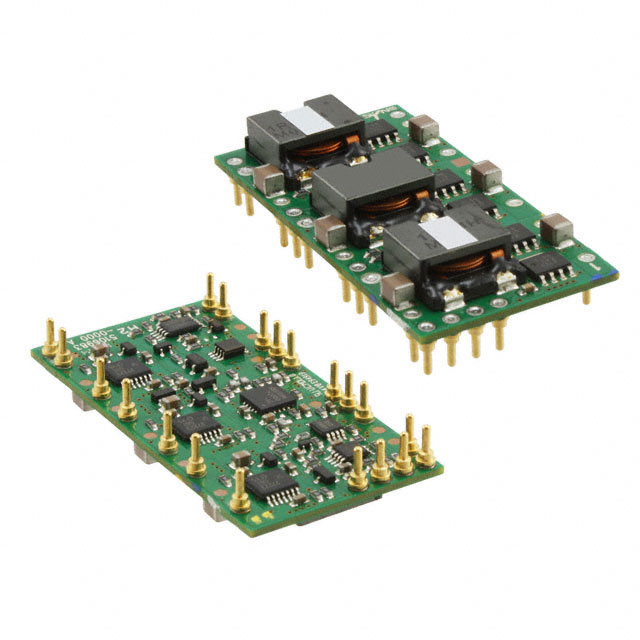

lmages are for reference only.PTH12040WAD
DC DC CONVERTER 0.8-5.5V 275W
Datasheet20-DIP Module
66,913 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 50A 8V - 14V Input
PTH12040WAD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | PTH12040 (275W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.8 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 50A |
| Power (Watts) | 275 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 96% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP Module |
| Size / Dimension | 2.05" L x 1.05" W x 0.36" H (52.0mm x 26.6mm x 9.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PTH12040 |
| Voltage - Isolation | - |
| Product Attribute | |
|
 |
|
| Part Number | PTH12040WAD | PTH12040WAD | PTH12040WAH | PTH12040WAH |
| Manufacturer | Texas Instruments | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.8-5.5V 50A | DC DC CONVERTER 0.8-5.5V 275W | DC DC CONVERTER 0.8-5.5V | DC DC CONVERTER 0.8-5.5V |
| Series | Texas Instruments | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments |
| Packaging | Tray | Tray | Tray | Tray |
