PTN0603E1821BST1

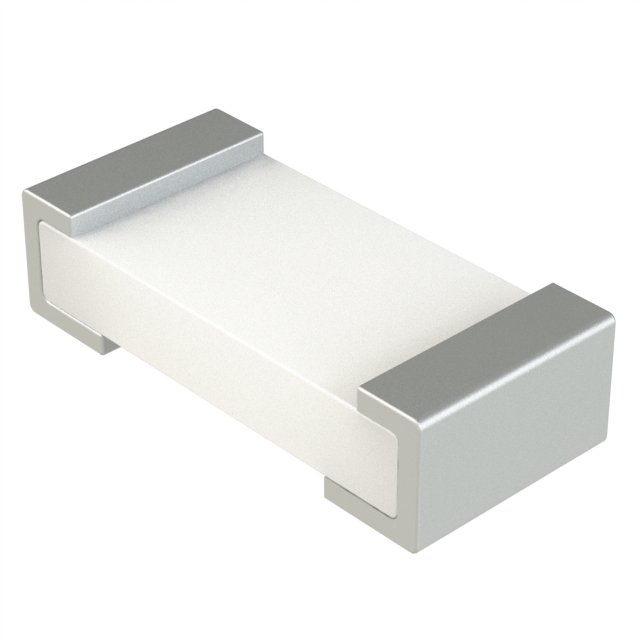

lmages are for reference only.PTN0603E1821BST1
RES 1.82K OHM 0.1% 0.15W 0603
Datasheet0603 (1608 Metric)
82,591 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.82 kOhms ±0.1% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Thin Film
PTN0603E1821BST1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | PTN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1.82 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.15W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.064" L x 0.032" W (1.63mm x 0.81mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | PTN0603E1801BST1 | PTN0603E1822BST1 | PTN0603E1872BST1 | PTN0603E1000BST1 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 1.8K OHM 0.1% 0.15W 0603 | RES 18.2K OHM 0.1% 0.15W 0603 | RES 18.7K OHM 0.1% 0.15W 0603 | RES 100 OHM 0.1% 0.15W 0603 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
