PTR016V0400-BK

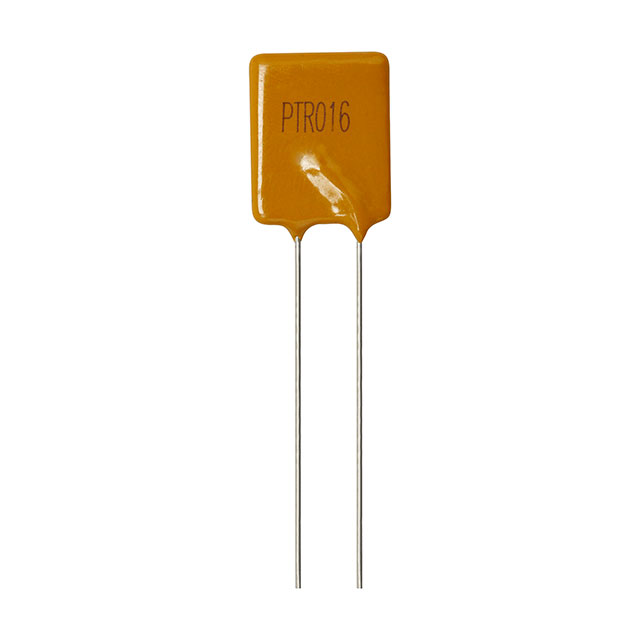

lmages are for reference only.PTR016V0400-BK
PTC RESET FUSE 16V 4A RADIAL
DatasheetRadial, Disc
96,481 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 16V 4 A Ih Through Hole Radial, Disc
PTR016V0400-BK
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | PTR016V |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Hold (Ih) (Max) | 4 A |
| Current - Trip (It) | 6.8 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.350" L x 0.122" W (8.90mm x 3.10mm) |
| Height - Seated (Max) | 0.504" (12.80mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Approval Agency | cURus, TUV |
| Time to Trip | 1.7 s |
| Resistance - Initial (Ri) (Min) | 21 mOhms |
| Resistance - Post Trip (R1) (Max) | 60 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PTR016V0400-BK1 | PTR016V0400-TR | PTR016V0400-TR1 | PTR016V0090-BK |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 16V 4A RADIAL | PTC RESET FUSE 16V 4A RADIAL | PTC RESET FUSE 16V 4A RADIAL | PTC RESET FUSE 16V 900MA RADIAL |
| Series | PTR016V | PTR016V | PTR016V | PTR016V |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
