PV-8A10F
lmages are for reference only.PV-8A10F
FUSE CARTRIDGE 8A 1KVDC 5AG
Datasheet5AG, 10mm x 38mm (Midget)
27,664 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8A 1 kVDC Fuse Cartridge Requires Holder
PV-8A10F
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | PV |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 8A |
| Voltage Rating - AC | - |
| Response Time | - |
| Applications | Solar (Photovoltaic) |
| Features | - |
| Class | - |
| Approval Agency | CCC, CSA, UL |
| Operating Temperature | -40°C ~ 90°C |
| Breaking Capacity @ Rated Voltage | 50kA |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 3.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
|
 |
|

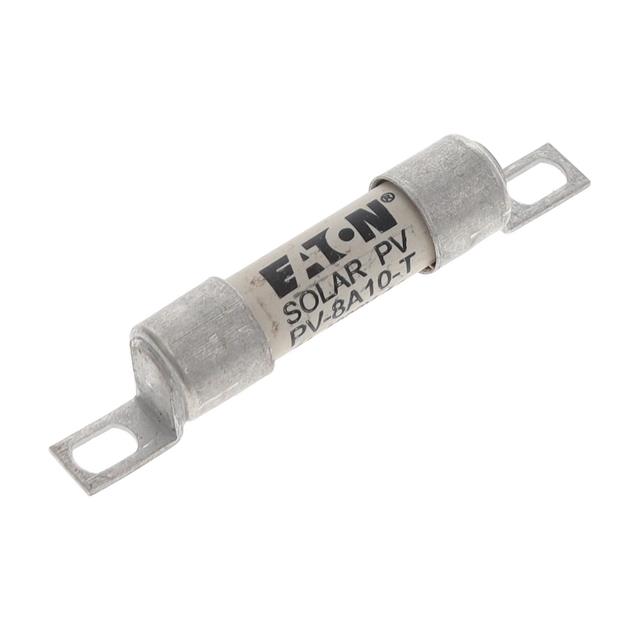

| Part Number | PV-8A10-1P | PV-8A10-2P | PV-8A10-T | PV-8A10F-CT |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | FUSE CARTRIDGE 8A 1KV RADIAL | FUSE CARTRIDGE 8A 1KV RADIAL | FUSE CARTRIDGE 8A 1KVDC CYLINDR | 8AMP 1000V DC INLINE FUSE/HOLDER |
| Series | PV | PV | PV | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
