PYKUGLJANF-100.000000
lmages are for reference only.Payment Methods
Delivery Services
100 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-CSMD, No Lead
PYKUGLJANF-100.000000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Taitien |
| Series | PY-U |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 100 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 30mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-CSMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.038" (0.96mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

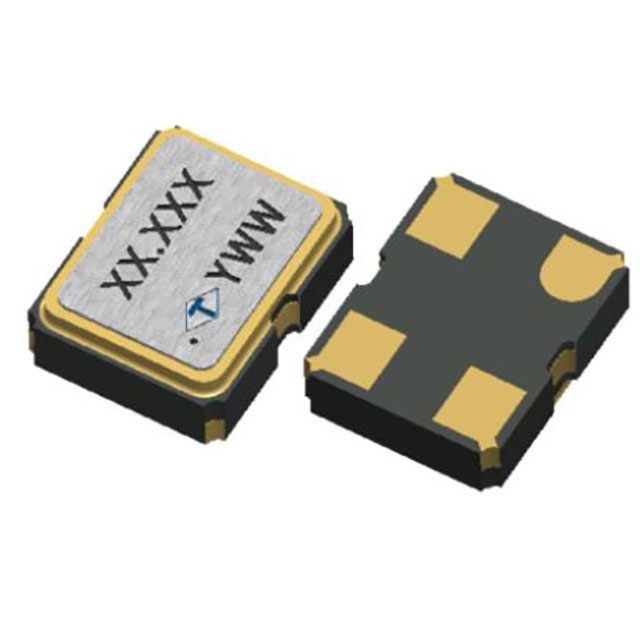

| Part Number | PYKUGLJANF-25.000000 | PYKUGLJAYF-100.000000 | PYKUGLJAYF-25.000000 | PYKUGLJAYF-50.000000 |
| Manufacturer | Taitien | Taitien | Taitien | Taitien |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 25MHZ 1.8V CMOS SMD | OSC 2520 XO 100.00MHZ 1.8V CMOS | OSC 2520 XO 25.00MHZ 1.8V CMOS P | XTAL OSC 50.0000MHZ CMOS SMD |
| Series | Taitien | Taitien | Taitien | Taitien |
| Packaging | Strip | Bulk | Bulk | Bulk |
