Q4015LTTP

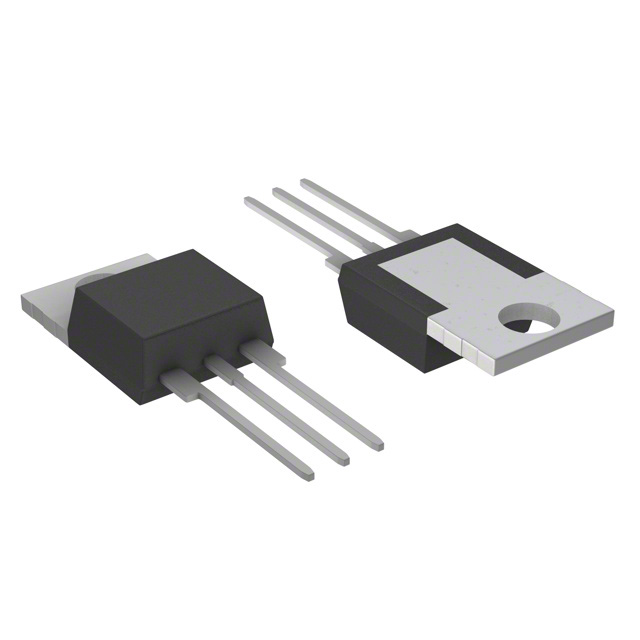

lmages are for reference only.Q4015LTTP
TRIAC INT TRIG 400V 15A TO220AB
DatasheetTO-220-3 Isolated Tab
98,144 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
TRIAC Internally Triggered 400 V 15 A Through Hole TO-220AB-L
Q4015LTTP
| Category | Discrete Semiconductor Products - Thyristors - TRIACs |
| Manufacturer | Littelfuse Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Triac Type | Internally Triggered |
| Voltage - Off State | 400 V |
| Current - On State (It (RMS)) (Max) | 15 A |
| Voltage - Gate Trigger (Vgt) (Max) | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 167A, 200A |
| Current - Gate Trigger (Igt) (Max) | - |
| Current - Hold (Ih) (Max) | 70 mA |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Isolated Tab |
| Supplier Device Package | TO-220AB-L |
| Base Product Number | Q4015 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | Q4015L5 | Q4015L555 | Q4015L556 | Q4015L559 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIAC 400V 15A TO220 | TRIAC 400V 15A TO220 | TRIAC 400V 15A TO220 | TRIAC 400V 15A TO220 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
