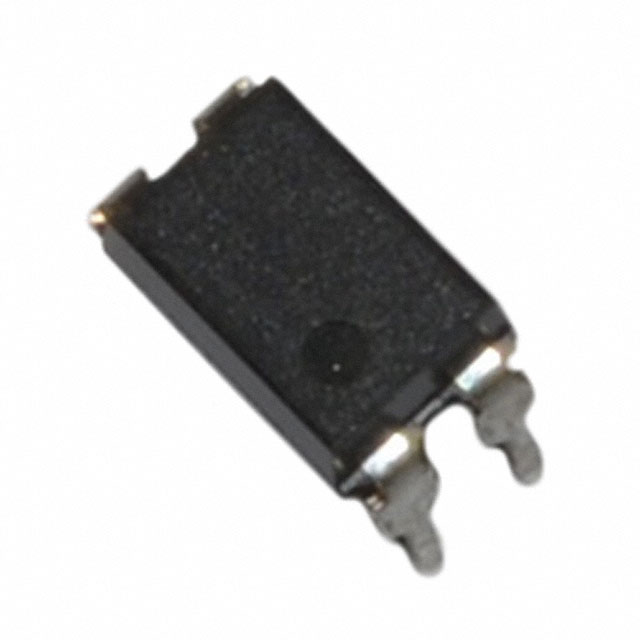

Q817C
lmages are for reference only.Q817C
DIP 4PIN DC INPUT PHOTOTRANSISTO
Datasheet4-DIP (0.300", 7.62mm)
16,040 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Q817C
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | QT Brightek (QTB) |
| Series | Q817 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 6µs, 8µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 35V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | Q817 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

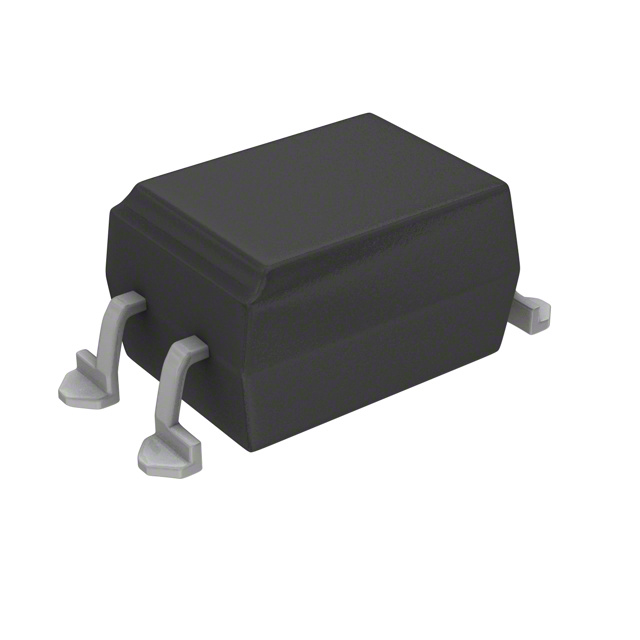

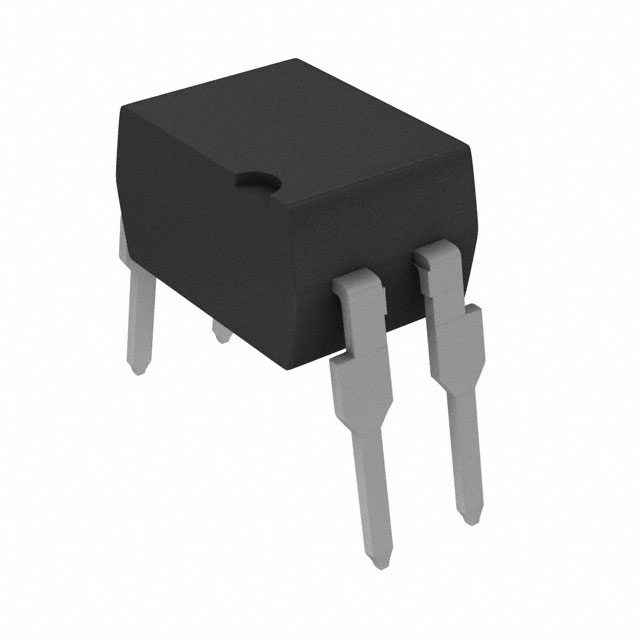

| Part Number | Q817 | Q817B | Q817BST1 | Q817CST1 |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOCPLR DC-INPUT 1.2V 4DIP | DIP 4PIN DC INPUT PHOTOTRANSISTO | SMD 4PIN DC INPUT PHOTOTRANSISTO | SMD 4PIN DC INPUT PHOTOTRANSISTO |
| Series | Q817 | Q817 | Q817 | Q817 |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
