QA243D-2GR3
lmages are for reference only.QA243D-2GR3
DC DC CONVERTER FOR IGBT DRIVER,
Datasheet24-DIP Module, 6 Leads
54,023 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 24V 24V 100mA, 100mA 21.6V - 26.4V Input
QA243D-2GR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 6 Leads |
| Size / Dimension | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 5 kV |
| Product Attribute |  |
 |
 |
 |

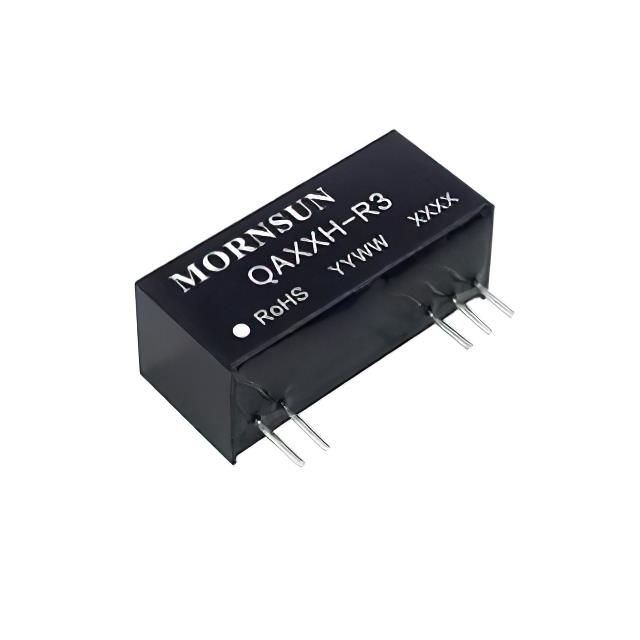

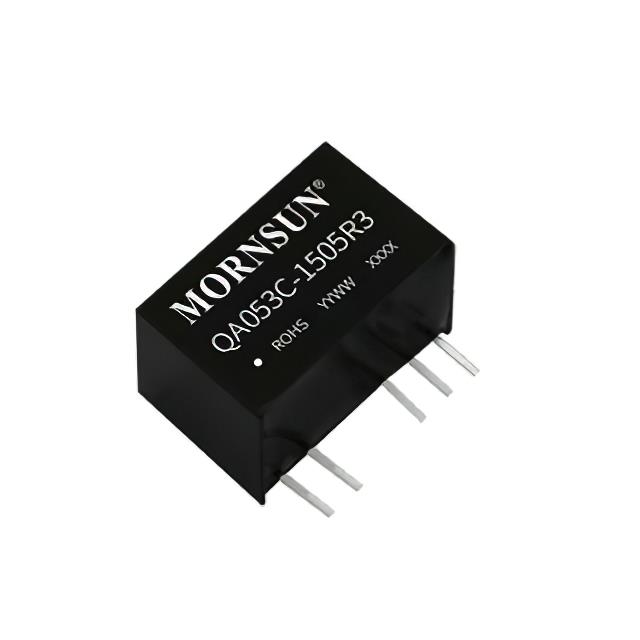

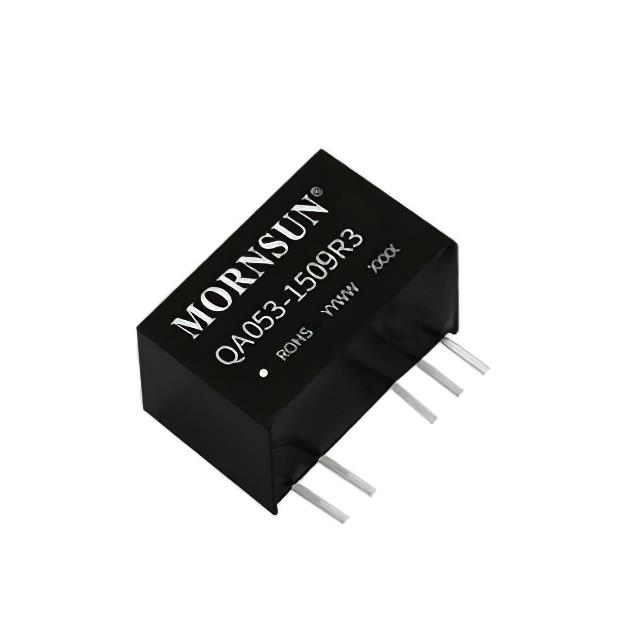

| Part Number | QA243-1509R3 | QA243C-1504R3 | QA243C-2005R3 | QA243H-1509R3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

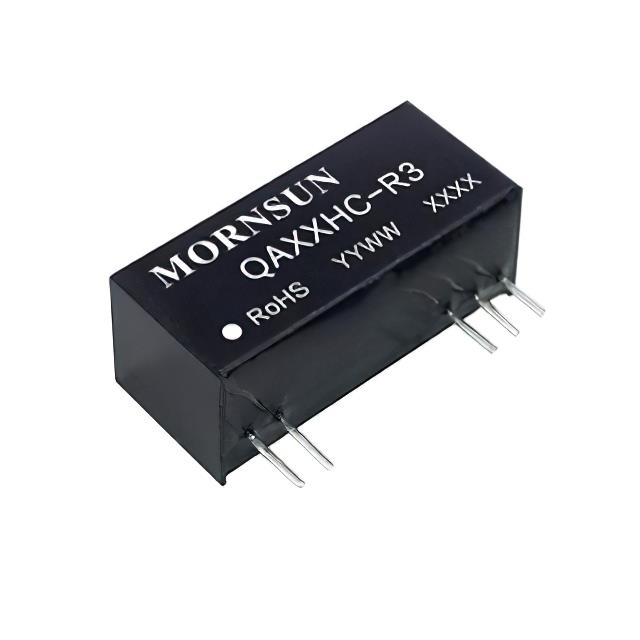

| Description | DC DC CONVERTER 15V 15/-9.0V 2.4 | DC/DC CONVERTER 24V 15/-4.0V 2. | DC/DC CONVERTER 24V 20/-5.0V 2.2 | DC/DC CONVERTER 24V 15/-9.0V 2.4 |
| Series | ||||
| Packaging | QA-R3 | QA_C-R3 | QA_C-R3 | QA_H-R3 |
